This plan is an elegant, 5 bedroom Mediterranean design home plan,
featuring all the necessities for a family oriented lifestyle under 4500
square feet. Its impressive front facade includes cascading roof planes,
and cantilevered balconies. The grand entry has tall mahogany doors that
open to the foyer. The spacious master suite of this floor plan features
a bath with a circular spa, rotunda ceiling design and an oversized
walk-in shower. The upstairs has three large bedroom suites that are
accessible to the front and rear balconies. This home plan also offers
an adequate sized loft and vestibule that is open to the parlor.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

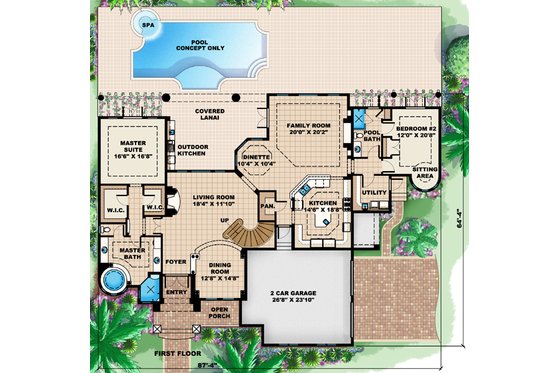

Floor Plan - Main Floor

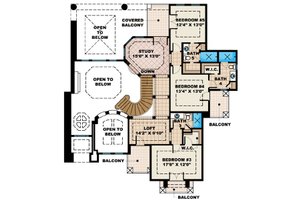

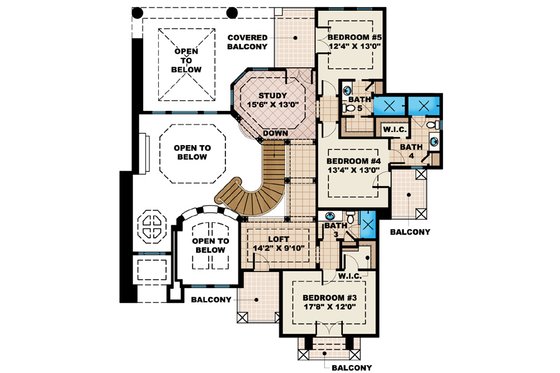

Floor Plan - Upper Floor
Full Specs & Features
Decks : 87 sq/ft
Garage : 682 sq/ft
Main Floor : 2956 sq/ft
Patios : 443 sq/ft
