This Bermudian style home, displays plenty of eye-catching curb appeal. A prominent elevated entry welcomes visitors with its metal topped roof. Rough-cut stone provides a solid water-table and a contrast to the smooth vertical siding. Just through the front door is an open foyer that takes in views of the covered Lanai. This open concept layout encourages a relaxed lifestyle. Serve up snacks at the kitchen’s island or sit down for an elegant meal in the dining room. In the spacious Great Room, sliding glass doors beckon you outside to the rear Lanai. Lots of room for a wet-bar and even an outdoor kitchen. You’ll find plenty of storage throughout the home, and a huge walk-in pantry in the kitchen. The master suite opens to the Lanai, and offers two large walk-in closets, with a generous Master Bath with dual vanities. Secluded on the other side of the home are two Guest Bedrooms that share a full bath. A large Den sits at the rear of the home, with sliders that open to the bar and Lanai. The adjacent bathroom also serves as a pool bath. The 3-Car Garage steps up to a mud bench with handy closet. Nearby is the Utility Room where dirty clothes can be dropped off.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
Second floor framing (where appropriate)
The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

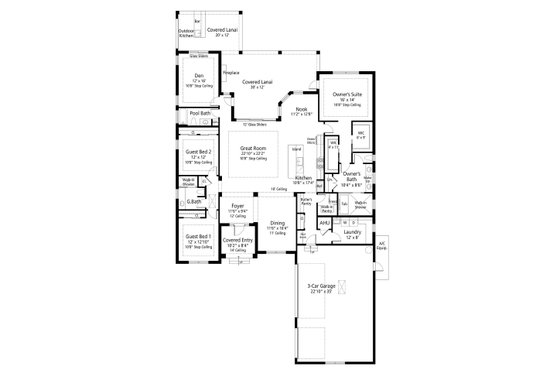

The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
Roof Plan & Soffit (Chase Layout) Plan
The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
Reflected Ceiling Plan
The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

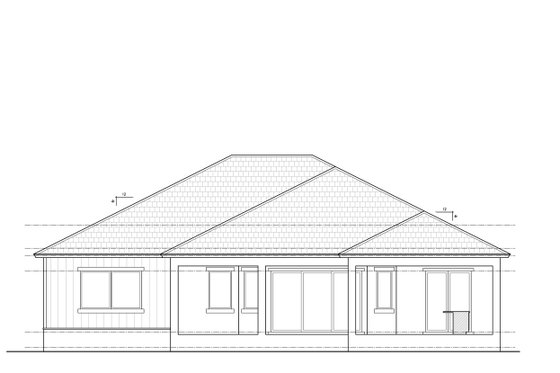

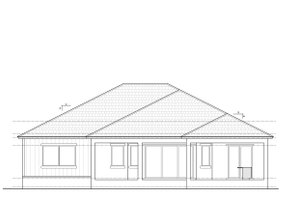

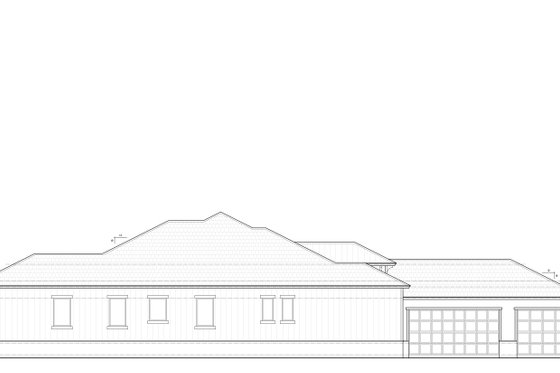

The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
Cross Section & Interior Elevations
The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
