Plan Description


The decorative beams in the great room will surely catch your eye upon entering this home plan. A true gourmet kitchen with separate prep area awaits you just around the corner. The master suite is located on the first floor with a private entrance outside and a quaint trellis above. This design puts all the guest rooms on the second floor with barrel ceilings heading out to their private balconies. See further description below.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

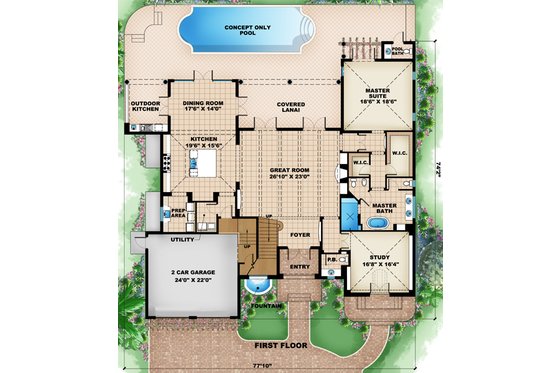

Floor Plan - Main Floor Plan

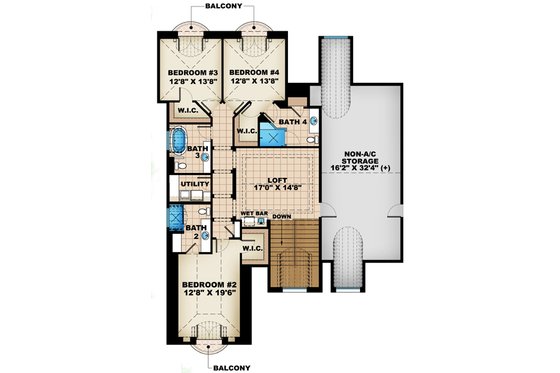

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 4
Baths : 4.5
Stories: 2
Garages: 2

Dimension

Depth : 74'
Height : 30'
Width : 78'

Area

Total : 4687 sq/ft
Decks : 33 sq/ft
Garage : 679 sq/ft
Main Floor : 3122 sq/ft
Patios : 528 sq/ft
Upper Floor : 1565 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12
Roof Framing : Manufactured Trusses
Roof Type : shingles

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Storage Area
Upstairs Laundry
Wet Bar

Garage Features

Front Entry Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony
Covered Rear Porch
Outdoor Kitchen Grill

Code Compliance

Irc 2006

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing


Plan Options

CAD Set

$2858.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$2858.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2858.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
