Plan #27-545

Key Specs


  • 4403 sq/ft

  • 4 Bedrooms

  • 4.5 Baths

  • 1 Floor

  • 4 Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

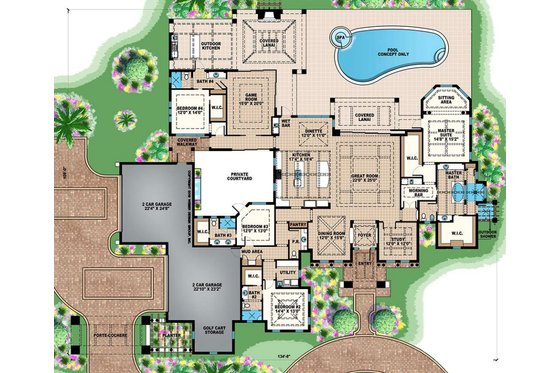

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 4 Beds 4.50 Baths 4403 Sq/Ft Plan #27-545 Floor Plan - Main Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 4.5
Stories : 1
Garages : 4

Dimension

Width : 134' 8"
Depth : 109'
Height : 28' 3"

Area

Total : 4403 sq/ft
Patios : 1131 sq/ft
Garage : 1307 sq/ft
Main Floor : 4403 sq/ft
Porch : 135 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 12'
Ceiling Details : coffered, vaulted, coffer w/beams, coffer T&G, double coffer, flat/beams, cupola

Roof

Roof Framing : Manufactured trusses
Roof Type : Cement Tile
Primary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Main Floor Master Bedroom
Walk In Closet
Guest Suite
Split Bedrooms
Main Floor Bedrooms

Kitchen Features

Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Breakfast Nook
Eating Bar
Kitchen Island

Additional Room Features

Main Floor Laundry
Great Room Living Room
Storage Area
Workshop
Hobby Rec Room Game Room
Master Sitting Area

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Covered Front Porch
Outdoor Kitchen Grill
Courtyard

More

Wheelchair Adaptable
Jack & Jill Bath

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
