Plan #27-432

Key Specs


  • 4735 sq ft

  • 4 Bedrooms

  • 5.5 Bathrooms

  • 3 Floors

  • 4 Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

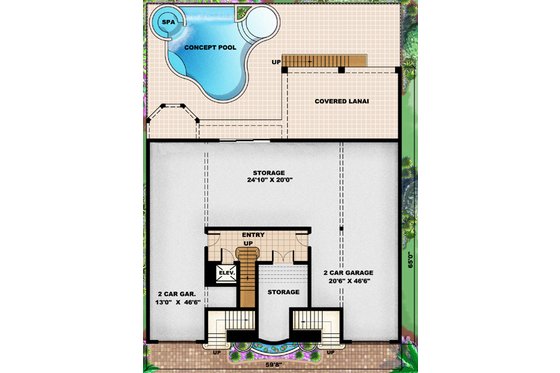

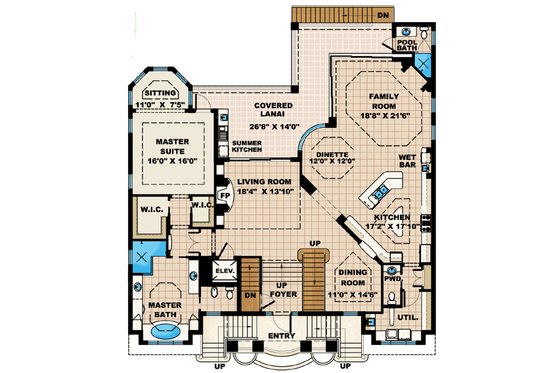

Floor Plan - Lower Floor Plan Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Potential Bedrooms : 4
Bedrooms : 4
Stories : 3
Baths : 5.5
Garage Stalls : 4

Dimension

Width : 60'
Depth : 65'
Height : 45'

Area

Lower Floor Sq Ft : 308 sq ft
Main Floor Sq Ft : 2734 sq ft
Total Sq Ft : 4735 sq ft *
Upper Floor Sq Ft : 1693 sq ft
Garage Sq Ft : 2411 sq ft
Decks Sq Ft : 539 sq ft
Patios Sq Ft : 1111 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Type : Cement Tile
Primary Pitch : 6:12
Roof Framing : Manufactured Trusses

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : Concrete block

Bedroom Features

Guest Suite
Walk In Closet
Main Floor Master Bedroom
Upstairs Bedrooms

Kitchen Features

Kitchenette Wet Bar
Peninsula Eating Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Kitchen Island

Additional Room Features

Great Room Living Room
Main Floor Laundry
Wet Bar
Family Room Keeping Room
Master Sitting Area
Storage Area

Garage Features

Garage Under
Front Entry Garage

Entryway

Split Entry

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Loft Balcony
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch Sunroom

Code Compliance

Irc 2006

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $3986.10 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $3986.10 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $3986.10 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Pier $0.00 Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal Now $3986.10

You save $442.90 (10% savings)

Sale ends on 06/30/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350
