Plan #27-514

Key Specs


  • 4920 sq/ft

  • 3 Bedrooms

  • 3.5 Baths

  • 2 Floors

  • 2 Garage
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

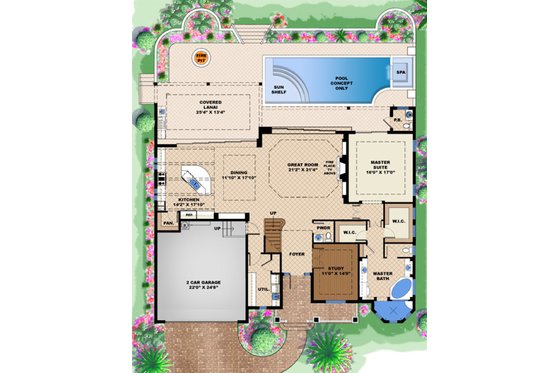

Floor Plan - Main Floor Plan
Beach Style House Plan - 3 Beds 3.50 Baths 4920 Sq/Ft Plan #27-514 Floor Plan - Main Floor Plan

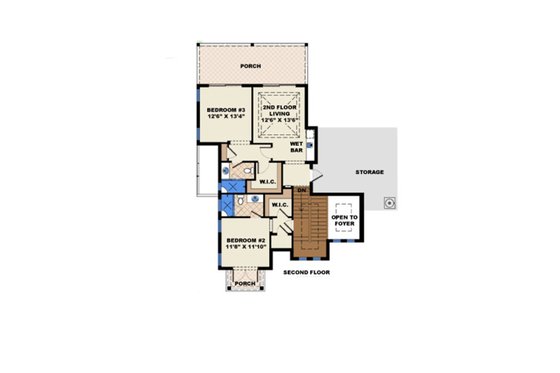

Floor Plan - Upper Floor Plan
Beach Style House Plan - 3 Beds 3.50 Baths 4920 Sq/Ft Plan #27-514 Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 3.5
Stories : 2
Garages : 2

Dimension

Width : 64' 10"
Depth : 59' 8"
Height : 32'

Area

Total : 4920 sq/ft
Porch : 149 sq/ft
Upper Floor : 1017 sq/ft
Bonus : 310 sq/ft
Garage : 558 sq/ft
Patios : 594 sq/ft
Main Floor : 2292 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : coffered, T&G, flat, vaulted
Main Ceiling : 13'

Roof

Roof Framing : Manufactured trusses
Roof Type : Tile Roof
Primary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Split Bedrooms
Main Floor Master Bedroom
Walk In Closet
Guest Suite

Kitchen Features

Walk In Pantry Cabinet Pantry
Kitchen Island
Eating Bar

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Great Room Living Room
Storage Area
Bonus Play Flex Room

Garage Features

Front Entry Garage
Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Loft Balcony

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.
