Plan Description


This Courtyard House Plan evokes a casual elegance and the open floor plan creates fluidity between the rooms, both indoor and out. The two story home design offers almost 2,500 square feet of living space with three bedrooms, two full baths and one half bath, an upstairs loft and a spacious three car garage. The great room layout allows the casual living areas to remain open to each other while they remain defined by individual furnishings and décor. A series of three French doors allow an abundance of natural light into the space while creating an easy transition to the outdoor living area. The covered lanai spans the rear of the home and is screened-in for year round enjoyment! The Hideaway House Plan has a distinct appeal and is a beautiful, functional home for any location.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

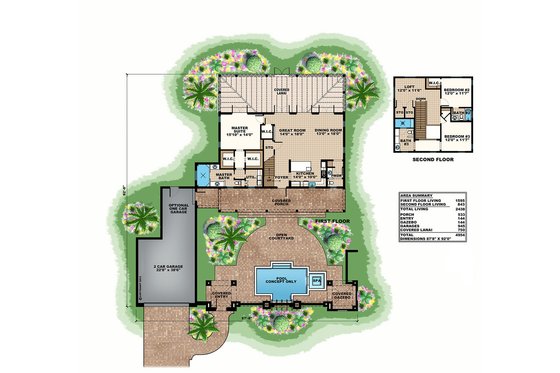

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 3

Dimension

Depth : 92'
Height : 29' 7"
Width : 87' 8"

Area

Total : 4954 sq/ft
Garage : 945 sq/ft
Main Floor : 1595 sq/ft
Patios : 750 sq/ft
Porch : 533 sq/ft
Upper Floor : 843 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9' 4"

Roof

Primary Pitch : 4:12
Roof Framing : Mfg Trusses
Roof Type : Concrete Tile
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU, 2x6 wood frame

Bedroom Features

Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom

Garage Features

Detached Garage
Front Entry Garage
Oversized Garage
Tandem Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Screened Porch

More

Economical To Build
Empty Nester
Jack & Jill Bath
Suited For Vacation Home

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

* See important information before purchasing

Pricing


Plan Options

CAD Set

$1457.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$1457.75
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$1457.75
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
