Mediterranean House Plan 120-216 5407 sq ft, 5 bed, 6.5 bath, 2 floor, 3 garage

Key Specs

5407
sq ft

5
Beds

6.5
Baths

2
Floors

3
Garages

Plan Description

This mediterranean design floor plan is 5407 sq ft and has 5 bedrooms and 6.5 bathrooms.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Modify this Plan

Floor Plans

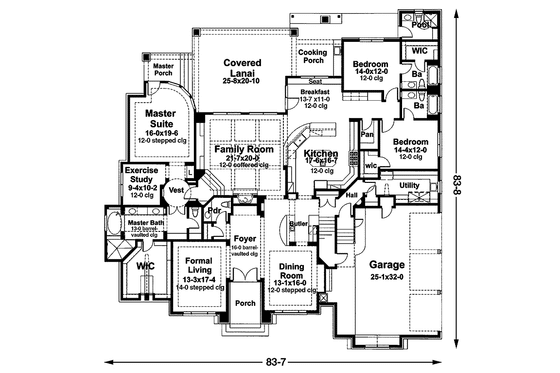

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Basic Features

Bedrooms : 5

Baths : 6.5

Stories: 2

Garages: 3

Dimension

Depth : 84'

Height : 41'

Width : 84'

Area

Total : 5407 sq/ft

Basement Unfinished: 3823 sq/ft

First Floor: 3823 sq/ft

Second Floor: 1584 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Conventional

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Exercise Room

Family Room Keeping Room

Hobby Rec Room Game Room

Master Sitting Area

Media Room

Storage Area

Outdoor Spaces

Courtyard

Outdoor Kitchen Grill

Rooms

Bedroom 2:

168 sq/ft width 14' x depth 12'

Bedroom 3:

171 sq/ft width 14' 4" x depth 12'

Bedroom 4:

182 sq/ft width 15' 1" x depth 12' 1"

Bedroom 5:

181 sq/ft width 13' 4" x depth 13' 7"

Breakfast Nook:

149 sq/ft width 13' 7" x depth 11'

Dining Room:

209 sq/ft width 13' 1" x depth 16'

Entry:

133 sq/ft width 7' 7" x depth 17' 8"

Exercise Room:

94 sq/ft width 9' 4" x depth 10' 2"

Family Room:

431 sq/ft width 21' 7" x depth 20'

Game Room:

322 sq/ft width 18' 1" x depth 17' 10"

Kitchen:

290 sq/ft width 17' 6" x depth 16' 7"

Living Room:

228 sq/ft width 13' 2" x depth 17' 4"

Master Bathroom:

107 sq/ft width 13' 5" x depth 8'

Master Bedroom:

312 sq/ft width 16' x depth 19' 6"

Media Room:

458 sq/ft width 23' 5" x depth 19' 7"

Storage:

width 8' x depth 0"

What's included in this plan set

See a sample plan set

Designer offers a 2nd Build License for $395 with a PDF purchase as well as an Unlimited License for $395 with the purchase of a CAD.
Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.

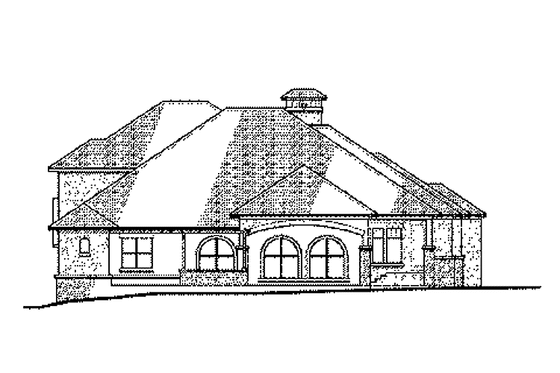

Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases. Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.

Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home. Most of this information can usually be determined from the exterior elevations.

Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances.

Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.

Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns. Consulting a local engineer is advisable as well as is analysis of soil conditions on site.

Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.
