Plan #27-563

Key Specs


  • 4120 sq/ft

  • 3 Bedrooms

  • 3.5 Baths

  • 1 Floor

  • 3 Garage

Plan Description

At just over 4,000 square feet, this single story house plan includes luxury features like a wine room, formal living room with a gas fireplace, handsome study and multiple French doors throughout. Enjoying the weather or beautiful view year round is easy to do with the large covered lanai that hosts an outdoor kitchen.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

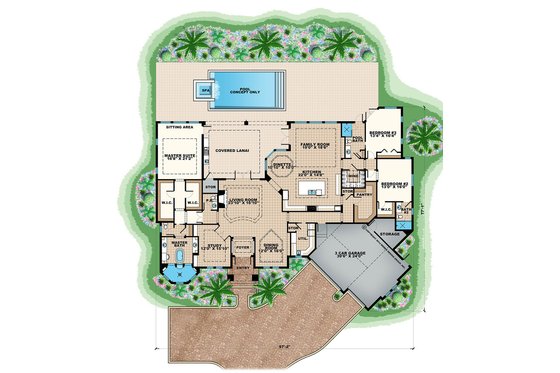

Floor Plan - Main Floor Plan
Contemporary Style House Plan - 3 Beds 3.50 Baths 4120 Sq/Ft Plan #27-563 Floor Plan - Main Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 3.5
Stories : 1
Garages : 3

Dimension

Depth : 77' 1"
Height : 26' 2"
Width : 97' 2"

Area

Total : 4120 sq/ft
Garage : 859 sq/ft
Porch : 629 sq/ft
Main Floor : 4120 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Coffer, Double Coffer,
Upper Ceiling Ft : 16' 4"
Main Ceiling : 12'

Roof

Roof Type : Concrete Tile
Roof Framing : Manufactured Trusses
Primary Pitch : 6:12

Exterior Wall Framing

Framing : CMU
Exterior Wall Finish : Stucco and stone

Bedroom Features

Main Floor Bedrooms
Split Bedrooms
Walk In Closet
Guest Suite
Main Floor Master Bedroom

Kitchen Features

Breakfast Nook
Kitchen Island
Eating Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Workshop
Storage Area
Main Floor Laundry
Family Room Keeping Room
Master Sitting Area
Wine Cellar

Garage Features

Oversized Garage
Front Entry Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Outdoor Kitchen Grill

More

Suited For Vacation Home
Wheelchair Adaptable
Jack & Jill Bath
Empty Nester
