Mediterranean Style Plan 27-490

Key Specs


Plan Sq Ft

6154
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$85.00
$33.15
Subtotal
NOW $2428.57
You save $428.57
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours: Mon - Fri 8:30 - 8:30 (EDT)

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

6154
sq ft

Plan Bedrooms

5
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Plan Description


The brand new coastal home design features an open concept floor plan with luxury amenities. The outdoor living areas feature a covered lanai with full kitchen and screened in pool and spa. A private guest suite above the garage is ideal for out of town guests or live in nanny. Multiple balconies, sliding glass doors and large picture windows ensure that no view in obstructed from this beautiful design. Take a further look at the Rum Cay House Plan as your new beach house!

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

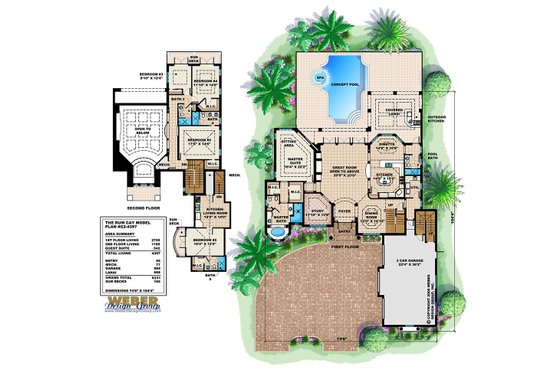

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5
Stories: 2
Garages: 3

Dimension

Depth : 104' 4"
Height : 41' 2"
Width : 74' 8"

Area

Total : 6154 sq/ft
Bonus : 542 sq/ft
Garage : 994 sq/ft
Main Floor : 2755 sq/ft
Patios : 185 sq/ft
Porch : 668 sq/ft
Upper Floor : 1100 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vault, Coffer, Double Coffer, Flat
Main Ceiling : 11'
Upper Ceiling Ft : 10'

Roof

Primary Pitch : 10:12
Roof Framing : Mfg Trusses
Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Wet Bar

Garage Features

Oversized Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Outdoor Kitchen Grill

More

Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

* See important information before purchasing

Pricing


Plan Options

CAD Set

$2428.57
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$2428.57
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2428.57
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
