Plan 27-471

Photographs may show modified designs.
Plan 27-471

Plan Description


There is such an interesting blend of materials on the outside as well as intricate details on the inside. The floor plan offers many bonuses you don't find in other house designs. There are exposed decorative beams throughout the house, that adds a lot of character and charm. Also, a completely separate "in-law suite" is like having a second master bedroom. If working in the garage interests you, there is plenty of space in the segregated workshop incorporated in this house design. This floor plan is definitely one to consider if the country/craftsman style is what you are looking for.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

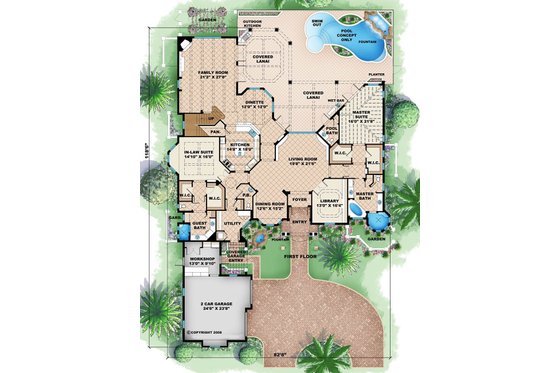

Floor Plan - Main Floor Plan

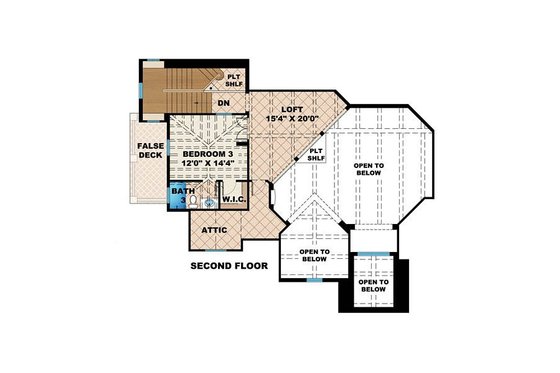

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 3.5
Stories: 2
Garages: 2

Dimension

Depth : 123' 2"
Height : 30' 6"
Width : 82' 8"

Area

Total : 6672 sq/ft
Garage : 816 sq/ft
Main Floor : 4074 sq/ft
Porch : 881 sq/ft
Upper Floor : 525 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : vault, coffer, deco beams
Main Ceiling : 10'
Upper Ceiling Ft : 25' 4"

Roof

Primary Pitch : 6:12
Roof Framing : Manufactured Trusses
Roof Type : slate shingles

Exterior Wall Framing

Exterior Wall Finish : stucco, stone
Framing : CMU, 2x6 wood

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Wet Bar
Workshop

Garage Features

Oversized Garage
Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

More

Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing


Plan Options

CAD Set

$5000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$5000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$5000.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
