Plan Description


This, two-story family home embraces many unique features. Stylish front steps lead to a veranda with large double-entry front doors. As you enter the grand foyer, you are treated to a magnificent view of the pool area and beyond through the large pocket sliding-glass doors featured in the living room. A lovely fireplace and built-in shelves grace one wall of the living room. As you pass through the arched opening situated next to a walk-in wet-bar, you enter the over-sized family room with built-in entertainment center, and a second fireplace. Large pocket-sliders offer access to the sizable covered lanai and outdoor kitchen area. The spacious master suite includes a large sitting area, providing a perfect spot for relaxation away from activities of the rest of the house. The luxurious master bath features an over-sized tub as the focal point of the room as well as a large dual-head shower area. Two huge walk-in closets and his-and-her water closets complete this outstanding bathroom design. The study with built-in bookshelves, large guest-bedroom suite, powder room, pool bath, utility room, and two separate two-car garages complete the first floor of this superb home. Ride the elevator or climb the grand staircase to the second floor where you will step onto a bridged walkway offering an outstanding view looking out over the pool and lanai area. A media/game room and three large bedroom suites, each with their own bath give this exceptional design unlimited potential.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

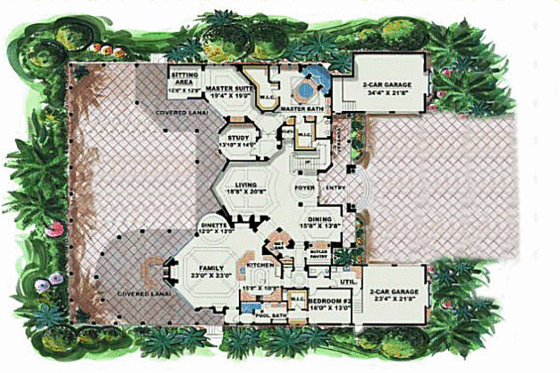

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

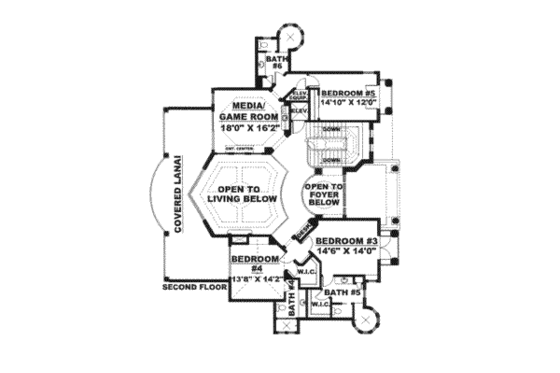

Floor Plan - Upper Floor

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 5.5
Stories: 2
Garages: 4

Dimension

Depth : 134'
Height : 43'
Width : 103'

Area

Total : 6780 sq/ft
Main Floor : 5060 sq/ft
Upper Floor : 1720 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Exterior Wall Framing

Framing : Concrete block

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Media Room
Storage Area

Garage Features

Side Entry Garage
Split Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Courtyard
Covered Front Porch
Covered Rear Porch

More

Jack & Jill Bath

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
