Plan 406-9619

Photographs may show modified designs.
Plan 406-9619

Key Specs


815
sq ft

1
Beds

1
Baths

1
Floors

1
Garages

Plan Description


This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

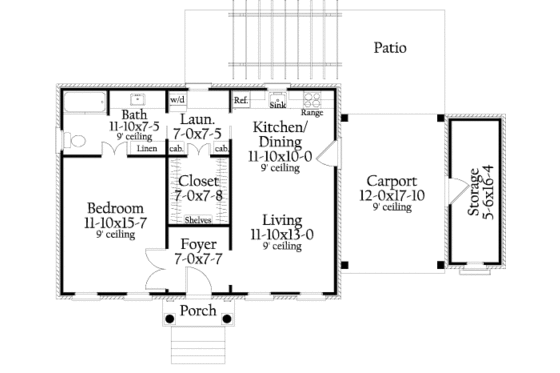

Floor Plan - Main Floor Plan

Reverse

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 1

Dimension

Depth : 28'
Height : 20'
Width : 51' 10"

Area

Total : 815 sq/ft
First Floor: 815 sq/ft
Storage: 125 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12
Roof Framing : 2x8 Framing
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : brick
Framing : 2"x4"

Bedroom Features

Main Floor Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Storage Area

Garage Features

Carport Porte Cochere

Lot Characteristics

Suited For Corner Lot
Suited For Narrow Lot

Outdoor Spaces

Breezeway
Covered Front Porch

More

Empty Nester

Rooms

Family Room:

153 sq/ft width 11' 10" x depth 13'

Foyer:

53 sq/ft width 7' x depth 7' 7"

Garage:

213 sq/ft width 12' x depth 17' 10"

Garage Storage:

89 sq/ft width 5' 6" x depth 16' 4"

Kitchen:

118 sq/ft width 11' 10" x depth 10'

Laundry Room:

51 sq/ft width 7' x depth 7' 5"

Master Bathroom:

87 sq/ft width 11' 10" x depth 7' 5"

Master Bedroom:

184 sq/ft width 11' 10" x depth 15' 7"

Master Closet:

53 sq/ft width 7' x depth 7' 8"

Patio:

345 sq/ft width 30' x depth 11' 6"

What's included in this plan set


See a sample plan set
  • The first sheet is the cover sheet which outline the Design Criteria and Construction Notes, such as general site, foundation, framing and mechanical notes
  • The second sheet is typically the front and side elevation drawn to 1/4" scale.
  • The third sheet is the rear and side elevation drawn to 1/4" scale.
  • The foundation of your choice (slab, crawl space or basement). Floor Plan 1/4" Scale
  • Detail and Section Page
  • Cabinet elevations & Roof Plan
  • Electrical Plan
  • Foundation Details
*See important information before purchasing

Pricing


Plan Options

5 Copy Set

$895.00
5 printed plan sets mailed to you.

8 Copy Set

$945.00
8 printed plan sets mailed to you.

PDF Set

Best Value!
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Crawlspace

$350.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Right-Reading Reverse

$255.00
Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Material List

$65.00
A list of building supplies needed to construct the infrastructure of your new house.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
