Plan #27-464

Key Specs


  • 13601 sq ft

  • 5 Bedrooms

  • 5.5 Bathrooms

  • 2 Floors

  • 4 Garage

Plan Description

This House Plan is complete with 2 master suites, separate caretaker’s quarters, 3 additional bedrooms and 5 full baths, it’s no wonder why this house plan was designed to not only take full advantage of view oriented lots with over 1,500 sq. ft. of outdoor living space but also functionally cater to exactly what modern families want in a luxury home. The interiors offer a tremendous amount of glass from floor to ceiling to provide a seamless view out across a reflection pond that spills into a large resort style infinity pool. The family room and outdoor living spaces are all designed to encroach like a peninsula out into the view corridor while bringing a tremendous amount of natural light into the home. The lower level master bath even has a cupola positioned just above the tub that sets the tone for the spa like atmosphere.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

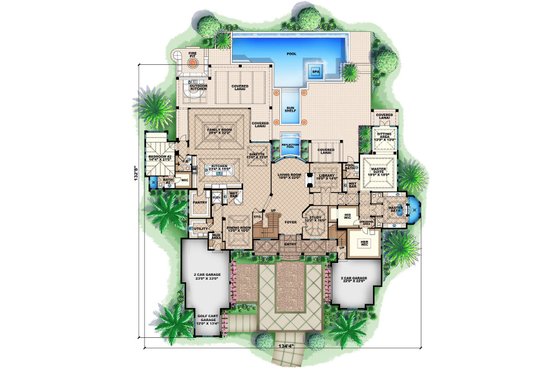

Floor Plan - Main Floor Plan
Colonial Style House Plan - 5 Beds 5.5 Baths 13601 Sq/Ft Plan #27-464 Floor Plan - Main Floor Plan - Houseplans.com

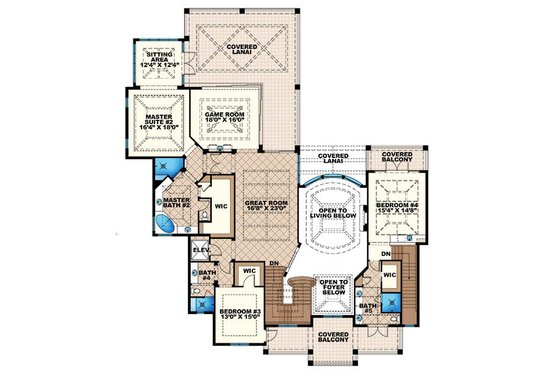

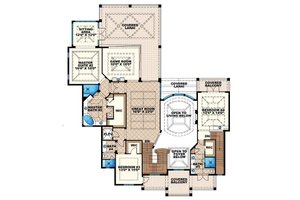

Floor Plan - Upper Floor Plan
Colonial Style House Plan - 5 Beds 5.5 Baths 13601 Sq/Ft Plan #27-464 Floor Plan - Upper Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Baths : 5.5
Stories : 2
Bedrooms : 5
Garage Stalls : 4

Dimension

Depth : 132' 8"
Width : 134' 4"
Height : 30'

Area

Upper Floor Sq Ft : 2858 sq ft
Total Sq Ft : 13601 sq ft *
Main Floor Sq Ft : 6041 sq ft
Garage Sq Ft : 1482 sq ft
Decks Sq Ft : 447 sq ft
Patios Sq Ft : 2477 sq ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling Ft : 10'
Upper Ceiling Ft : 12'

Roof

Roof Framing : Manufactured Trusses
Roof Type : Concrete Tile
Primary Pitch : 8:12

Exterior Wall Framing

Framing : CMU
Exterior Wall Finish : Stucco

Bedroom Features

Upstairs Master Bedrooms
Main Floor Bedrooms
Guest Suite
Teen Suite Jack Jill Bath
Main Floor Master Bedroom
Walk In Closet
Split Bedrooms
Upstairs Bedrooms
2 Master Suites

Kitchen Features

Butler's Pantry
Kitchen Island
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Breakfast Nook
Peninsula Eating Bar

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Workshop
Den Office Study Computer
Hobby Rec Room Game Room
Wet Bar
Bonus Play Flex Room
Main Floor Laundry
Master Sitting Area
Storage Area
Mud Room

Garage Features

Side Entry Garage
Oversized Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Covered Rear Porch
Outdoor Kitchen Grill
Loft Balcony
Covered Front Porch

More

Suited For Vacation Home
Empty Nester
Wheelchair Adaptable
Two Family Home

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $7071.42 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $7071.42 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $7071.42 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Crawlspace $0.00 Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse $1144.28 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal Now $7071.42

You save $785.71 (10% savings)

Sale ends on 12/05/2016

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
