Plan #27-536

Key Specs


  • 10875 sq/ft

  • 5 Bedrooms

  • 6.5 Baths

  • 2 Stories

  • 5 Garages
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

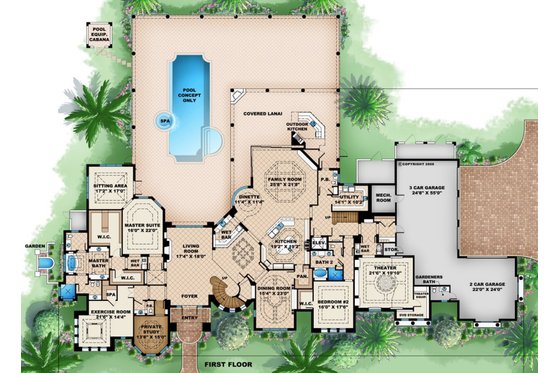

Floor Plan - Main Floor Plan
Mediterranean Style House Plan - 5 Beds 6.5 Baths 10875 Sq/Ft Plan #27-536 Floor Plan - Main Floor Plan

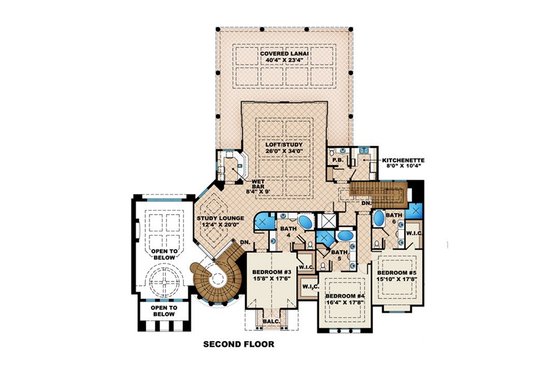

Floor Plan - Upper Floor Plan
Mediterranean Style House Plan - 5 Beds 6.5 Baths 10875 Sq/Ft Plan #27-536 Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 5
Baths : 6.5
Stories: 2
Garages: 5

Dimension

Depth : 105' 2"
Height : 0"
Width : 183'

Area

Total : 10875 sq/ft
Garage : 1961 sq/ft
Main Floor : 7364 sq/ft
Patios : 2463 sq/ft
Porch : 149 sq/ft
Upper Floor : 3511 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : double coffer, flat, vaulted, cupula
Main Ceiling : 12'

Roof

Roof Framing : Manufactured trusses
Roof Type : Cement Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Play Flex Room
Storage Area
Sunroom
Wet Bar
Workshop

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch

More

Wheelchair Adaptable

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $10142.85 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $10142.85 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $10142.85 For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options
Mirror Reverse Sets $1088.00 Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $1088.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal $10142.85

Best Price Guaranteed*
