This craftsman style home features a narrow plan with a rear load garage. Stone, siding, shingle siding, shutters, columns and corbels are just some of the extra details that were added for maximum curb appeal. As you enter the home, the main living area lies to the right and back where the kitchen, dining room and great rooms all blend together to create an open plan with plenty of volume. Additionally, a sunroom behind the main living area provides additional space for the family. To the left of the entry lies the master suite complete with walk-in closet and dual sinks in the on suite bathroom. A second bedroom with direct access to the full bath off the hallway is found behind the master. A two-stall garage completes this plan.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

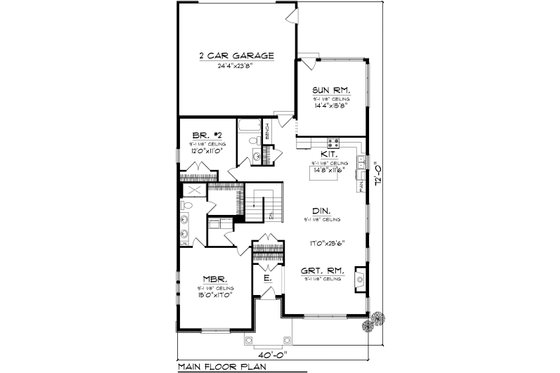

Floor Plan - Main Floor Plan
Full Specs & Features
Depth : 72'
Height : 24' 4"
First Floor: 1888 sq/ft
Garage: 600 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
width 12' x depth 11'
width 17' x depth 25' 6"
600 sq/ft width 24' 4" x depth 23' 8"
width 14' 8" x depth 11' 6"
width 15' x depth 17'
width 14' 4" x depth 15' 8"
