Plan #535-12

Key Specs


  • 1900 sq/ft

  • 3 Bedrooms

  • 2.5 Baths

  • 3 Floors

  • No Garage

Plan Description

The building is designed as a multi family unit with a central entry. Open decks and expansive windows make for generous living areas. Natural light floods the units from multiple directions offering natural ventilation and open vistas. The building is shown with exterior treatments of masonry and stucco. Exterior walls are designed for “green wall” construction typical with insulated (R30) ICF walls. The flat roof design is suitable for solar panels or wind turbines. This building is an efficient 6 unit apartment design offering generous floor plans for living and entertainment. Multiple windows offer ample natural light and cross ventilation. Open kitchen with eat-in counter compliments today's living.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

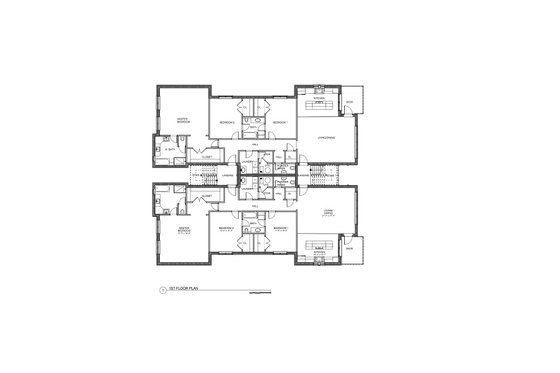

Floor Plan - Other Floor Plan Floor Plan - Upper Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 2.5
Stories : 3
Garages : 0

Dimension

Depth : 76' 8"
Width : 58'
Height : 37'

Area

Total : 1900 sq/ft
Main Floor : 1820 sq/ft
Decks : 80 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : WD. TRUSS

Exterior Wall Framing

Exterior Wall Finish : MASONRY/STUCCO
Framing : ICF
Insulation : ICF, R30

Kitchen Features

Kitchen Island
Peninsula Eating Bar

Additional Room Features

Great Room Living Room
Upstairs Laundry

More

Economical To Build

Energy Efficient Features

Energy Efficient Design
