Plan 535-19

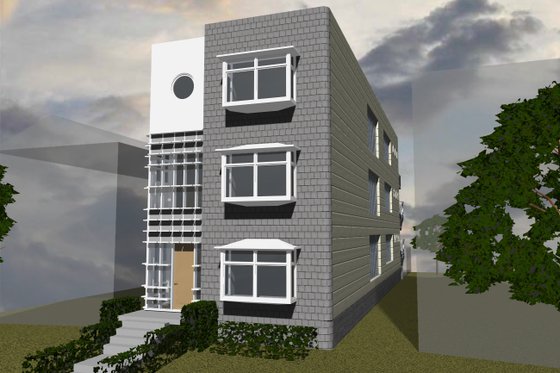

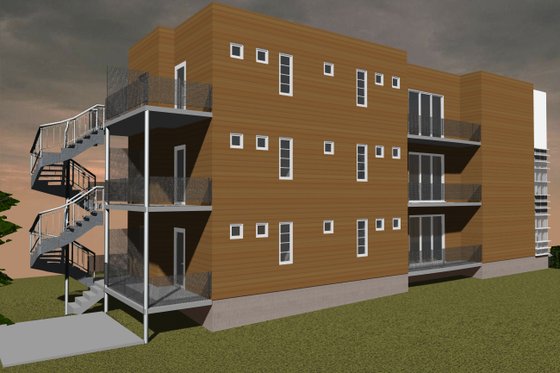

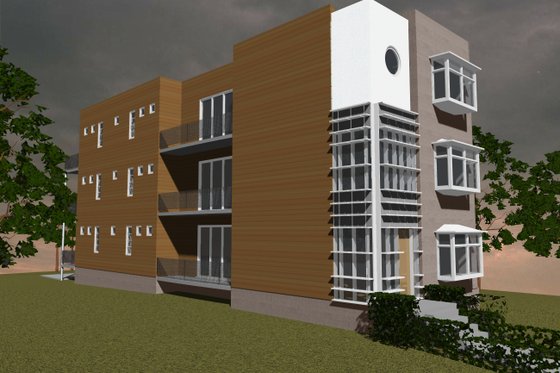

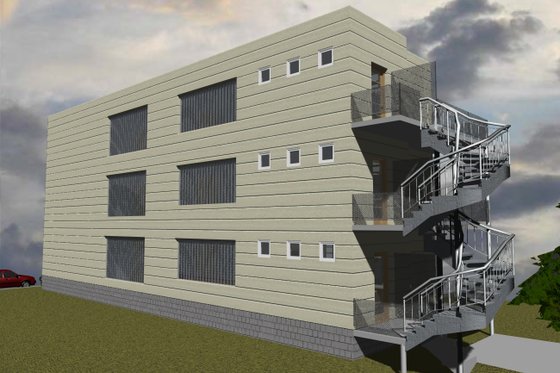

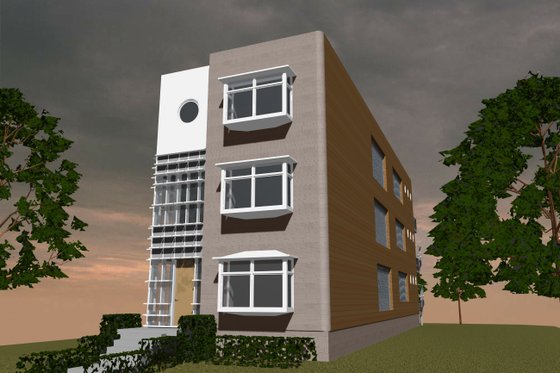

Photographs may show modified designs.
Plan 535-19

Key Specs


5019
sq ft

9
Beds

6
Baths

3
Floors

3
Garages

Plan Description


Contemporary 3 unit apartment building designed specifically as an infill building for a minimum 25 foot wide lot. Separate detached garage can be built in rear of lot and accessible to alley. As designed, the building conforms to R-3 zoning for a 25' x 125' lot. Each unit is 1294 sf with 3 bedrooms, 2 1/2 baths and expansive kitchen. The layout provides for open flow of living-dining-kitchen areas with direct access to the outdoors. With only 20 feet of interior building width, the design provides for efficient use of space and functionality. Expansive use of glass block walls provides generous natural light yet privacy from adjacent neighbors.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

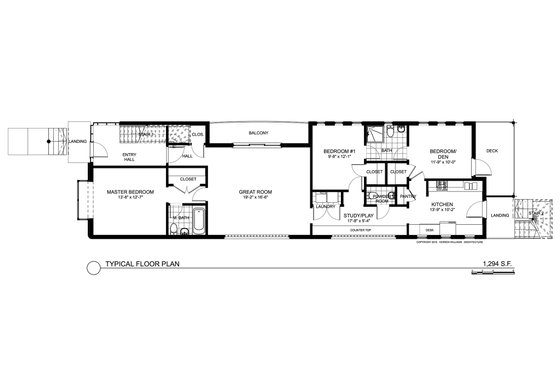

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 9
Baths : 6
Stories: 3
Garages: 3

Dimension

Depth : 75'
Height : 33'
Width : 22'

Area

Total : 5019 sq/ft
Decks : 516 sq/ft
Lower Floor : 1294 sq/ft
Main Floor : 1294 sq/ft
Patios : 176 sq/ft
Porch : 445 sq/ft
Upper Floor : 1294 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : WD. TRUSS
Roof Type : FLAT TRUSS

Exterior Wall Framing

Exterior Wall Finish : CMU, STUCCO, WOOD SIDING
Framing : ICF
Insulation : ICF, R28

Bedroom Features

Split Bedrooms
Walk In Closet

Kitchen Features

Butler's Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Play Flex Room

Garage Features

Detached Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

More

Economical To Build

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$4000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Basement

$1000.00
Ideal for level lot, lower level of home partially or fully underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
