Southwest House Plan 535-10

Key Specs


Plan Sq Ft

7010
sq ft

Plan Bedrooms

1
Beds

Plan Bathrooms

1
Baths

Plan Floors

3
Floors

Plan Garages

0
Garages

Questions? Get Personalized Help
Select Plan Set Options
What's included?
$85.00
$33.15
$170.00
Subtotal
NOW $1785.00
You save $315.00
(15% savings)
Sale ends soon!
Best Price Guaranteed

Or order by phone: 1-800-913-2350
Questions? Get Personalized Help



Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See Terms & Conditions and Privacy Policy.

Thanks for your question.

We will be in touch shortly.

Wow!
Cost to Build Reports
$1.99 with Code
CTBFALL (Limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Key Specs


Plan Sq Ft

7010
sq ft

Plan Bedrooms

1
Beds

Plan Bathrooms

1
Baths

Plan Floors

3
Floors

Plan Garages

0
Garages

Plan Description


This contemporary building is designed in response to the growing need for moderate cost, minimum size, rental housing demand that’s occurring in many American communities, particularly in downtown areas and/or college areas. Singles and empty nesters are ideal users. Fully equipped kitchens and baths compliment convertible living/sleeping areas, designed for in-cabinet beds or simply futon furnishings. The units are accessed by off street facing entry decks that also serve as informal gathering places. Off street parking can be located behind the building depending on site conditions and zoning requirements. The building is an efficient, 3 level “micro” apartment building with 9 units. Each unit is 345 s.f. (32 m2). Depending on lot size and zoning, additional units can be added without the need of additional floors. The building uses conventional construction and is designed for the use of energy efficient ICF exterior wall construction with stucco finishes and on the interior, insulated hollow metal gypsum drywall. Floors can be prefab concrete plank construction or open web joists with subfloor and finish floors. Each unit has individually controlled and metered rooftop HVAC units that are separately ducted into the living spaces. Operable windows also provide ample cross ventilation. Laundry, utility room, storage and trash collection are all located on the first floor level. Each floor has a trash chute. The building’s exteriors can be modified for different architectural styles.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

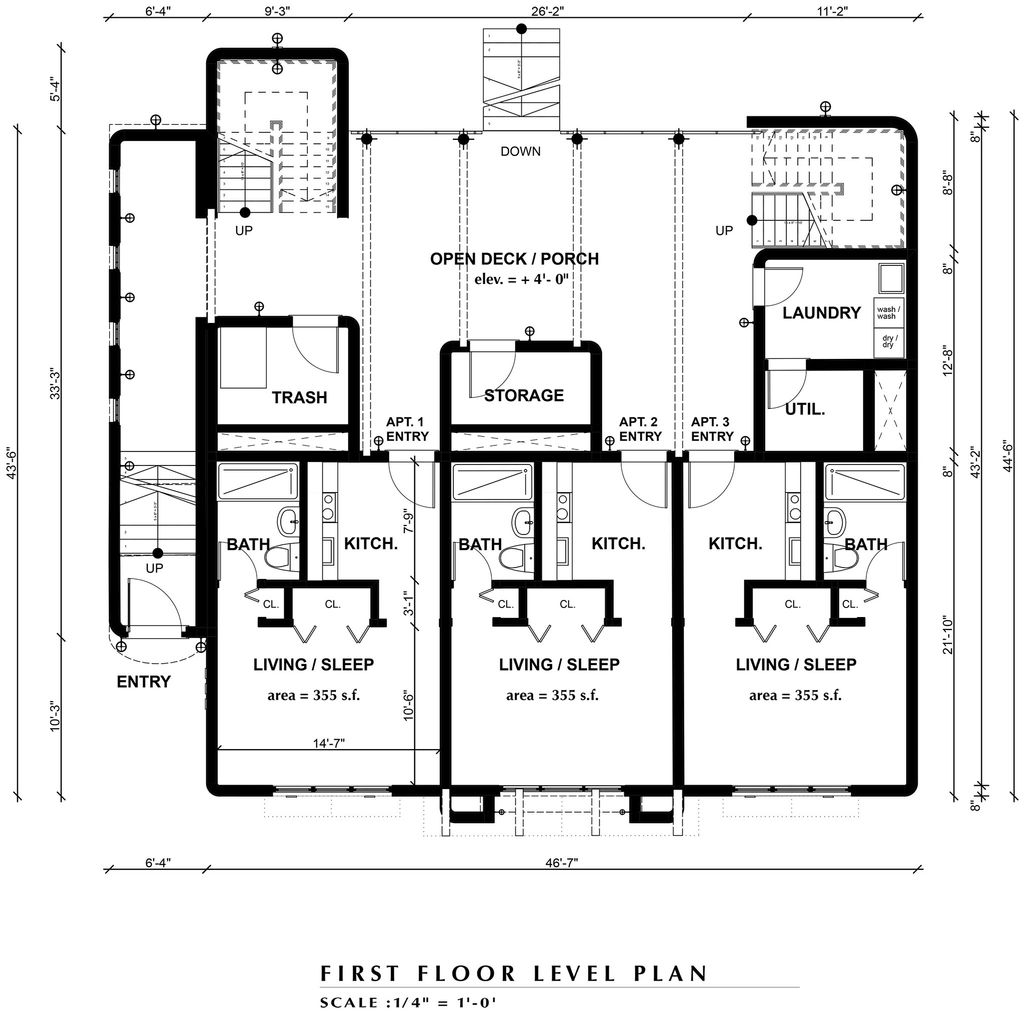

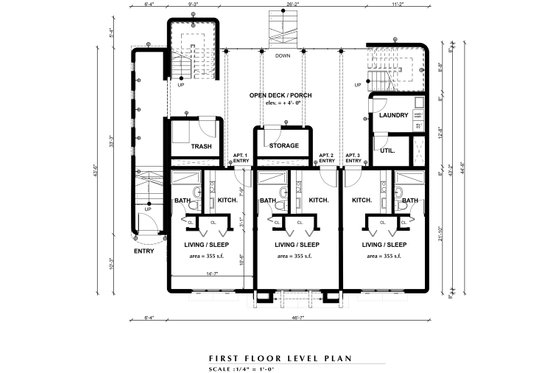

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

LEARN MORE

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 3
Garages: 0

Dimension

Depth : 43' 6"
Height : 33' 6"
Width : 53'

Area

Total : 7010 sq/ft
Lower Floor : 1950 sq/ft
Main Floor : 1790 sq/ft
Porch : 1620 sq/ft
Upper Floor : 1650 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 8'
Main Ceiling : 9' 6"

Roof

Primary Pitch : 1/4” TO 1'
Roof Framing : CONC/ PLANK OR POURED IN PLACE
Roof Type : Flat

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : ICF/EXTERIOR, HM. FRAME INTERIOR
Insulation : R-30, FOAM

Additional Room Features

Main Floor Laundry

Outdoor Spaces

Covered Rear Porch

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
  • Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
  • Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
  • Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
  • Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
* See important information before purchasing
