Plan Description


This little house makes a dandy studio for artists, novelists, poets, and tuba players. Or a cozy workshop for carving decoys, tying flies, throwing pots, or throwing tantrums. Or it could be the cottage out back for your mother-in-law, for you, when your kid who majored in art history moves back home. It could be your cabin in the woods. Or the starter house for your third marriage. WORKSHOP French doors for moving large items in and out, or for letting in the evening air. 11 feet of work counter space with sink and under counter storage (or maybe even a small fridge to cool your choice of beverage). Plenty of windows for ample daylight to see what you're working on. 16' Wide x 12' Deep Overall Dimension to fit nicely in your backyard. 192 square feet total interior space (not including optional Loft). 13' x 11' (143 square feet) of open floor work space. Ceiling heights and volume vary with each design style. The optional Loft is 75 square feet. The Loft is not legally occupiable space. COTTAGE French doors for moving in the sleeper sofa and letting in the morning air with your first cup of coffee. Private toilet and shower room. A small but useful closet for your weekend jeans and t-shirts. 8 feet of counter space with sink and room for a small microwave, plus under counter storage with room for a small fridge to cool last night's leftover pizza and your choice of beverage. Plenty of windows for ample daylight to read that book you heard reviewed on the radio. 16' Wide x 12' Deep Overall Dimension to fit nicely in your backyard. 192 square feet total interior space (not including optional Loft). 9' x 11' (99 square feet) of open floor space for furnishing to your needs and liking. Ceiling heights and volume vary with each design style. The optional Loft is 75 square feet. The Loft is not legally occupiable space. STUDIO French doors for moving that old desk or large easel in and out, and for letting in the evening air. Private toilet room with hand sink so you don't have to run back to your house. 8 feet of counter space with sink and room for a small microwave, plus under counter storage with room for a small fridge to cool your choice of beverage or for cooling your heels. Plenty of windows for ample daylight to see your work and to gaze outside for inspiration. 16' Wide x 12' Deep Overall Dimension to fit nicely in your backyard. 192 square feet total interior space (not including optional Loft). 9' x 11' (99 square feet) of open floor space for room to think or paint or... Ceiling heights and volume vary with each design style. The optional Loft is 75 square feet. The Loft is not legally occupiable space.

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

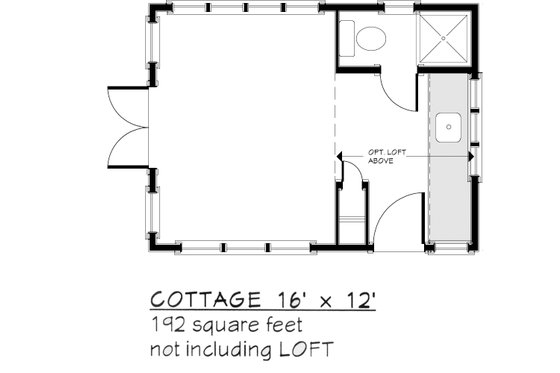

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

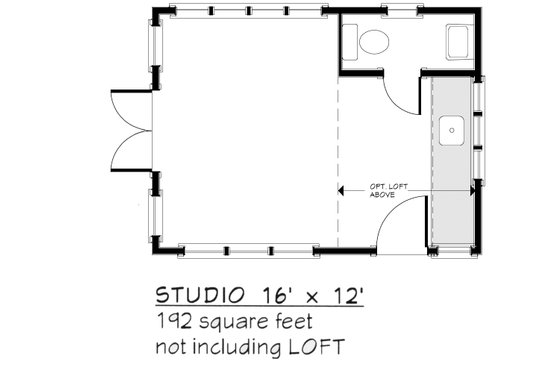

Floor Plan - Main Floor

Floor Plan - Main Floor

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 12'
Height : 15' 1"
Width : 16'

Area

Total : 192 sq/ft
Main Floor : 192 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 14:12
Roof Framing : Stick
Secondary Pitch : 16:12

Exterior Wall Framing

Exterior Wall Finish : Cedar Shingles (Upper) Stucco with Wood Trim (Lower)
Framing : 2x4

What's included in this plan set


See a sample plan set

A1- Cover Sheet:

  • General Notes
  • Full-color exterior rendering of the Garage/Apartment
A2 - Foundation and Floor Plan
  • Drawn to a scale of 1/4"=1'-0" (1/4 inch equals 1 foot; 1 inch equals 4 feet)
  • Position and dimensions of doors, windows, interior walls, etc. are indicated
A3 - Roof Plans
  • Drawn to 1/4-inch scale
  • Dimensioned Roof Plan and Roof Framing Plan
A4 - Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the front and right side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A5- Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the rear and left side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A6- Building Section and Details:
  • Building Section drawn to 3/8-inch scale
  • Wall and roof section
  • Indicates dimensions of wall plate heights from slab-on-grade
  • Indicates eave overhang dimension from exterior wall studs
  • Generic exterior wall details, not to scale
E1- Schematic, Generic Electrical Layouts:
  • Drawn to 1/4-inch scale
  • Suggested locations for electrical components: lighting fixtures, switches, and outlets
PDF Plan Sets - all printed in color on 11" x 17" paper.
  • Cheaper to print/copy than larger format plan sets.
  • Easier to use on the job site.
  • Easier to use when shopping for tile, etc.
  • More convenient to archive after your house or accessory building is complete.

* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$599.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Unlimited Use License

$299.50
Allows you to build this home as many times as you want.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.

Meet the Designer

The Homestead Partners

The Homestead Partners - Houseplans.com
House plans for small, big, colonial, modern, and everything in between. You may insist on having more than one. We're Ron Sakal and Sallie Hood (sakal-hood.com), a husband-and-wife team of architects who've spent decades creating workable townscapes, rescuing city centers from random development, designing beautiful houses, and teaching bright young architecture students how to do the same. Along the way, we've become experts on the styles of American houses, ideas, designs, and materials that transform small and affordable spaces into wonderful places to live. Now we're offering those great American styles to everyone who yearns for something more interesting and more connected to the American culture. Look around our collection of houses and see what moves you. After that, our firm is just like that home of yours: small and affordable. Ron Sakal, formerly Executive Director and co-founder of the Center for Building Communities and Professor of the practice, University of Notre Dame School of Architecture. Sallie Hood, formerly director of designs and co-founder of the Center for Building Communities and Professor of the practice, University of Notre Dame School of Architecture. Introducing the "The California Collection" - Less than half the size of a doublewide. Six gorgeous little 400-square-foot houses, each with full kitchens and bathroom, private bedroom with space for at least a queen-size bed, living/dining/kitchen that opens to an outdoor dining patio or terrace, and plenty of storage. Big enough to have a friend over. Just make sure you're in love with them first. Santa Barbara (Plan # 917-3) Santa Cruz (Plan # 917-4) Rancho Mirage (Plan # 917-1) San Rafael (Plan # 917-2) Sonoma (Plan # 917-6) Silverlake (Plan # 917-5) Introducing the "Lake Cottage Collection" - Charming and cozy, but not too sweet. Inspired by the 1920s cottages on the eastern shore of Lake Michigan, here's a compound for your extended family. Or one house for you. There are five: two big, two medium, and one small, with two garages to mix and match. Union Pier (Plan # 917-13) Lakeside (Plan # 917-12) 2 Car Garage w/Studio (Plan # 917-10) 1 Car Garage w/Studio (Plan # 917-8) Studio (Plan # 917-11) 2 Car Garage (Plan # 917-9) 1 Car Garage (Plan # 917-7) Click the plan images below to explore these two great collections.
