• In just under 2,000 square feet, this Craftsman style ranch makes use of every inch of living space. • The open-concept floor plan greets you as you enter with the great room to the front of the home. • The kitchen overlooks the dining and great rooms with a breakfast bar that includes the sink so mom is never left out of the conversation. • A covered porch is located off the back of the home and is private to the master suite. • All of the bedrooms are found on the right of the home with the two smaller bedrooms and full bath are in the front. • The master suite includes double sinks, a spacious walk-in closet and a private covered porch. • The garage is a three-stall side-load.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

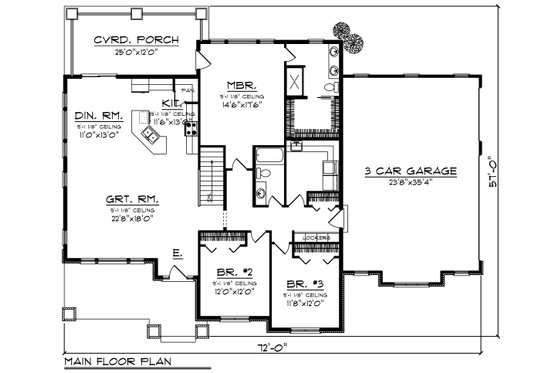

Floor Plan - Main Floor
Full Specs & Features
Depth : 57'
Height : 25' 4"
Garage : 837 sq/ft
Main Floor : 1983 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Lower Ceiling : 9'
Main Ceiling : 9'
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Shake, Horizontal Siding. Stone.
Framing : 2x6
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
