Plan Description

This home is designed for a Southwestern lifestyle. It has a dramatic entryway with an option 800 square foot Casita, ideal for a home office or a 2-Gen living unit. The swimming pool/spa are also shown as optional lifestyle elements. The building design is proportionally based on the “Golden Rectangle,” as a proven standard of beauty and harmony. The Great Room offers unlimited views of the yard and pool areas. While the garage is designed for 2 cars, it can be expanded for a third car or golf cart. Dependent on site conditions, the garage can be moved to the rear of the site. The exterior walls are designed for “green wall” construction, typical with insulated ICF wall products. Ample roof areas can also accommodate energy saving solar panels.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 4
Stories: 1
Garages: 2


Depth : 56' 2"
Height : 13' 6"
Width : 52' 4"


Total : 2924 sq/ft
Bonus : 802 sq/ft
Garage : 698 sq/ft
Main Floor : 2924 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.


Bonus Ceiling : 12'
Garage Ceiling : 8'
Main Ceiling : 9'


Roof Framing : Flat truss system

Exterior Wall Framing

Exterior Wall Finish : Stucco
Framing : ICF/Exterior, Wd. Frame Interior
Insulation : ICF - R30

Additional Room Features

Den Office Study Computer
Master Sitting Area
Unfinished Future Space

Garage Features

Detached Garage
Oversized Garage
Rear Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Outdoor Spaces



Two Family Home
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

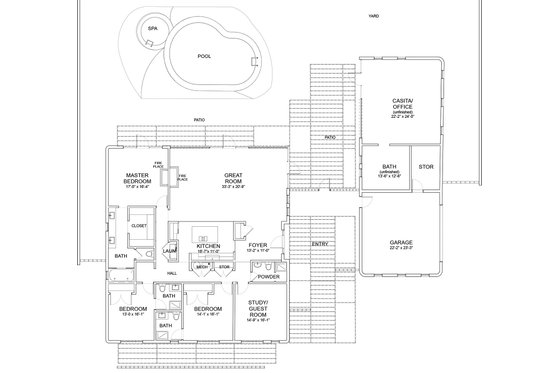

  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
