Plan #1042-16

Key Specs


  • 3353 sq/ft

  • 4 Bedrooms

  • 4 Baths

  • 2 Stories

  • 2 Garages

Plan Description

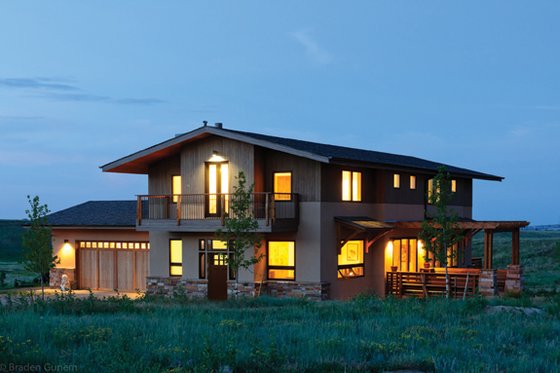

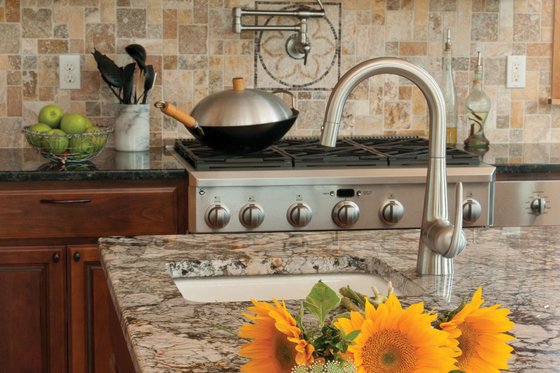

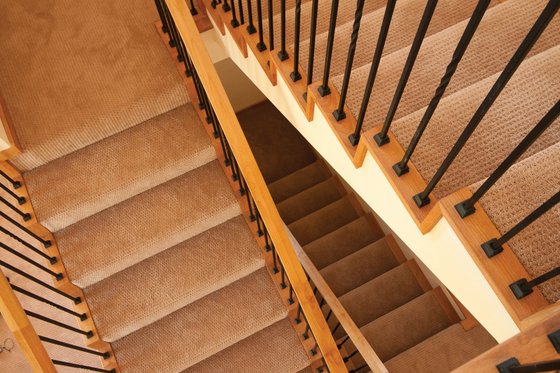

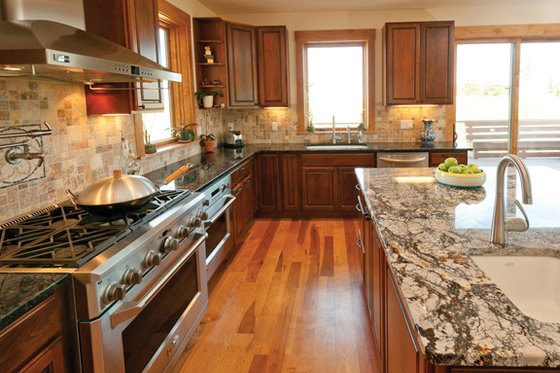

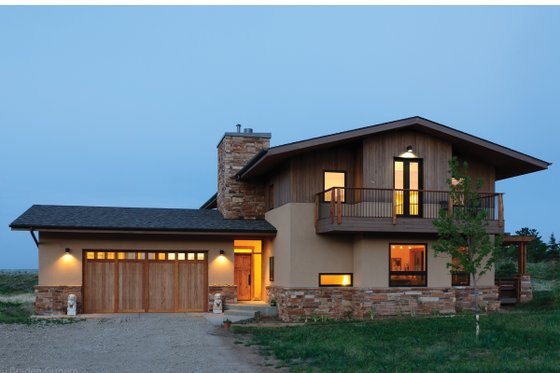

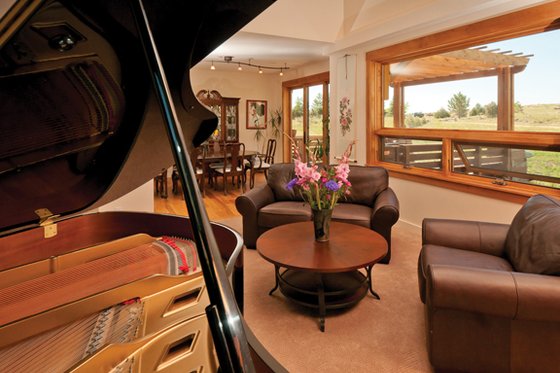

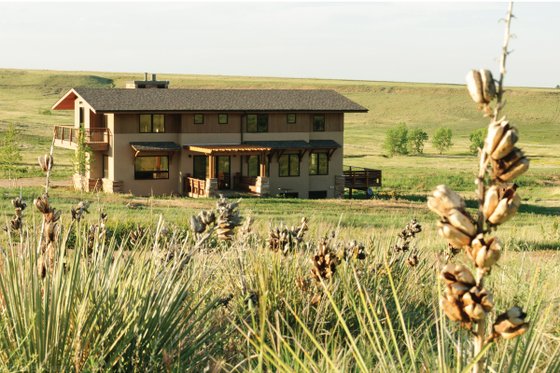

This beautifully proportioned contemporary Prairie-style home sits confidently on its site. Strong, clean lines and a simple geometry speak to the modern influence. Big sunny windows and ample decks connect the open floor plan to the outside, with a large wood trellis on the patio offering protection from the sun. Each of the four bedrooms has its own full bathroom. The main floor is divided into the more formal visitor’s side and the casual family wing. Here, the kitchen includes a built-in desk, handy for checking email, and a uniquely shaped island large enough for four people to eat. The ground floor bedroom serves as a great home office, guest, or in-law room. Sun-tubes pour daylight down the grand central stair. On the second floor, a catwalk looks down into the dining room. On one end sit two secondary bedrooms and a bonus room that would make a great study. With plenty of privacy on the other end, the large master has vaulted ceilings, a private balcony, a walk-in closet, and a five piece bath. When oriented properly, this home is designed to take advantage of passive solar lighting with large windows and properly sized overhangs and shading devices. Roof surfaces are also arranged to hold solar electric panels. This plan is offered with either ICF (insulated concrete form) or conventional 2x6 wall framing. A faux-chimney can be used to house and camouflage an evaporative cooler as well as all mechanical room venting. The plan comes with a bonus “Green Specifications” sheet that helps you make this home extra energy and resource efficient.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

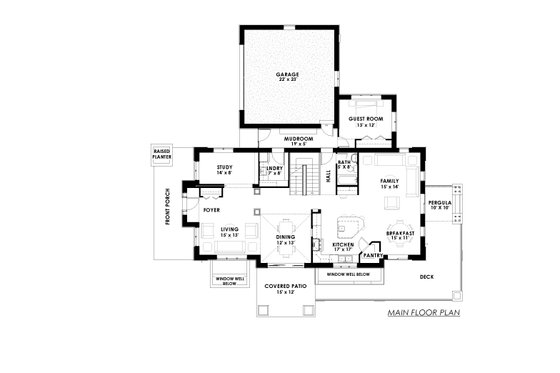

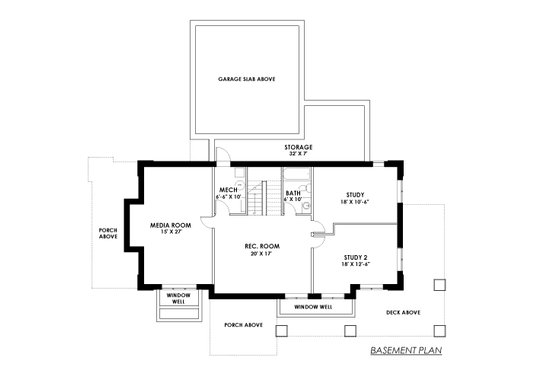

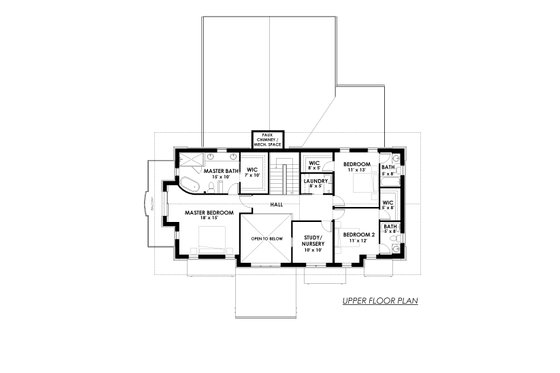

Floor Plan - Main Floor Plan Floor Plan - Upper Floor Plan Floor Plan - Lower Floor Plan

Full Specs & Features

Basic Features

Bedrooms : 4
Baths : 4
Stories: 2
Garages: 2

Dimension

Depth : 71'
Height : 31' 3"
Width : 68'

Area

Total : 3353 sq/ft
Basement Unfinished: 1552 sq/ft
First Floor: 1923 sq/ft
Garage: 578 sq/ft
Second Floor: 1430 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 3:12
Roof Framing : Truss
Roof Type : Metal
Secondary Pitch : 2:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : ICF (Insulated Concrete Forms)

Bedroom Features

Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings

Garage Features

Front Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Rear Porch
Deck
Wrap Around Porch

What's included in this plan set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

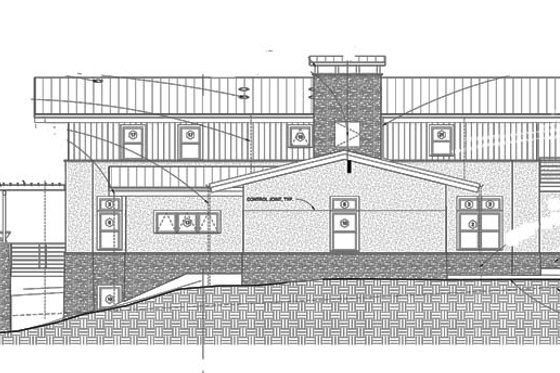

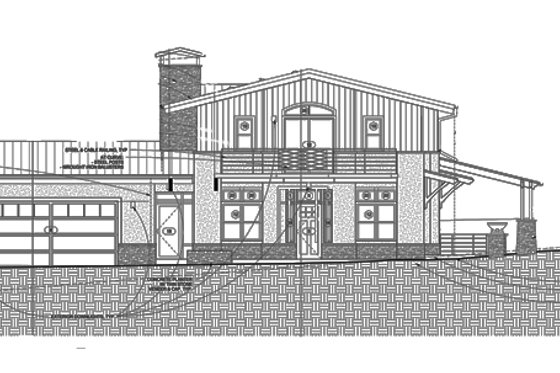

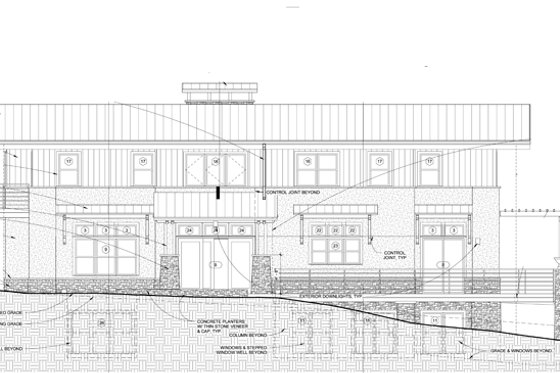

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing

Plan Options
PDF Set Best Value! $1170.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation Options
Daylight Basement $0.00 Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
