Plan Description


The San Rafael is one of six gorgeous little 400-square-foot houses in the California Collection created by The Homestead Partners. Each house has a full kitchen and bathroom, private bedroom with space for at least a queen-size bed, living/dining/kitchen that opens to an outdoor dining patio or terrace, and plenty of storage. Big enough to have a friend over. Just make sure you're in love with them first. There was more than one way to translate the ranch house into housing during the 1950s. The peaked roof and floor-to-ceiling windows look became thousands of subdivision tract homes, the best of which are still fabulous. You'll also recognize it as the prototype for scores of restaurants and cafés scattered throughout California, most famously the original Tiny Naylor's at La Brea and Sunset. Ours could be a five-stool diner if you insist, but then where would the guests sleep when dinner was over? Hint: on the porch if you build it somewhere with the right climate. Interior Features 400 square feet Open living/dining room and full kitchen, with raised eating counter peninsula, and sliding doors opening to covered raised side patio Cathedral ceilings with exposed beams throughout. Full bathroom Space for compact washer/dryer Bedroom sized for a queen bed, with built-in desk, storage, and closets Entry door opening to covered raised side patio Exterior Features 640 square feet Raised open-air patio with adjacent pool Covered raised side patio at entry Total Footprint 1,040 square feet

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

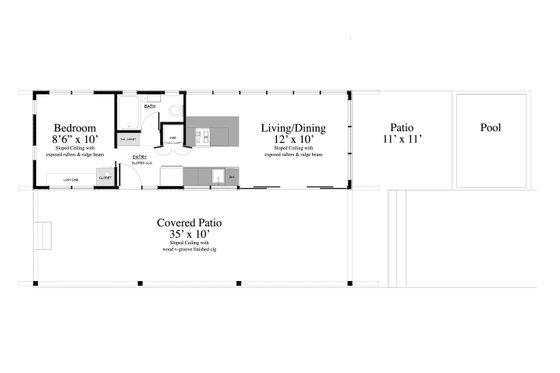

Floor Plan - Main Floor

houseplans LOGO

BUILDER Advantage Program

PRO BUILDERS

Join the club and save 5% on your first order.
PLUS download exclusive discounts and more.

Full Specs & Features


Basic Features

Bedrooms : 1
Baths : 1
Stories: 1
Garages: 0

Dimension

Depth : 21' 11"
Height : 14' 8"
Width : 55' 8"

Area

Total : 400 sq/ft
Main Floor : 400 sq/ft
Patios : 640 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Cathedral ceilings with exposed beams throughout.
Main Ceiling : 12'

Roof

Primary Pitch : 3:12
Roof Framing : Stick

Exterior Wall Framing

Exterior Wall Finish : Vertical Siding
Framing : 2x4

Additional Room Features

Great Room Living Room

Lot Characteristics

Suited For Narrow Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Grill Deck Sundeck

More

Suited For Vacation Home

What's included in this plan set


See a sample plan set

A1- Cover Sheet:

  • General Notes
  • Full-color exterior rendering of the Garage/Apartment
A2 - Foundation and Floor Plan
  • Drawn to a scale of 1/4"=1'-0" (1/4 inch equals 1 foot; 1 inch equals 4 feet)
  • Position and dimensions of doors, windows, interior walls, etc. are indicated
A3 - Roof Plans
  • Drawn to 1/4-inch scale
  • Dimensioned Roof Plan and Roof Framing Plan
A4 - Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the front and right side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A5- Exterior Elevations:
  • Drawn to 1/4-inch scale
  • Detailed drawings of the rear and left side of the building
  • Suggested window sizes and types
  • Suggested exterior materials, and critical vertical dimensions
A6- Building Section and Details:
  • Building Section drawn to 3/8-inch scale
  • Wall and roof section
  • Indicates dimensions of wall plate heights from slab-on-grade
  • Indicates eave overhang dimension from exterior wall studs
  • Generic exterior wall details, not to scale
E1- Schematic, Generic Electrical Layouts:
  • Drawn to 1/4-inch scale
  • Suggested locations for electrical components: lighting fixtures, switches, and outlets
PDF Plan Sets - all printed in color on 11" x 17" paper.
  • Cheaper to print/copy than larger format plan sets.
  • Easier to use on the job site.
  • Easier to use when shopping for tile, etc.
  • More convenient to archive after your house or accessory building is complete.

* See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$594.15
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options

Audio Video Design

$85.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unlimited Use License

$297.08
Allows you to build this home as many times as you want.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
