Plan #27-501

Key Specs


  • 3231 sq/ft

  • 3 Bedrooms

  • 3 Baths

  • 1 Floor

  • 3 Garage

Plan Description

This Olde Florida, coastal style house plan offer traditional elements with unique features. With a modest square footage, there are 3 bedrooms and 3 full baths, a formal study and home office, a large great room open all the living areas of the home and a beautiful outdoor living space with a fireplace and high vaulted ceilings! Take advantage of entertaining year round with this house plan, perfect for any coastal or intracoastal lot. Please note, the plan will need to be engineered by local engineering company and truss drawings must be done as well for most locations. This includes all of Florida. Can only be built in the Florida counties of Collier and Lee with written consent of the designer.
Modify This Plan

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350 for assistance.

Floor Plans

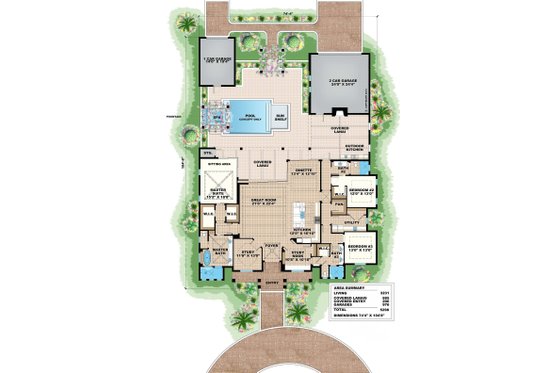

Floor Plan - Main Floor Plan
Southern Style House Plan - 3 Beds 3.00 Baths 3231 Sq/Ft Plan #27-501 Floor Plan - Main Floor Plan - Houseplans.com

Full Specs & Features

Basic Features

Bedrooms : 3
Baths : 3
Stories : 1
Garages : 3

Dimension

Width : 74' 4"
Depth : 104' 8"
Height : 30'

Area

Total : 3231 sq/ft
Garage : 976 sq/ft
Porch : 885 sq/ft
Main Floor : 3231 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Vault, Coffer, FLat
Main Ceiling : 12'

Roof

Roof Framing : Mfg Trusses
Primary Pitch : 8:12
Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Hardie Board Siding
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Bedrooms
Split Bedrooms
Teen Suite Jack Jill Bath
Main Floor Master Bedroom
Walk In Closet

Additional Room Features

Great Room Living Room
Den Office Study Computer

Garage Features

Detached Garage
Rear Entry Garage
Split Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Outdoor Kitchen Grill
Covered Front Porch
Covered Rear Porch

More

Suited For Vacation Home
Wheelchair Adaptable
Empty Nester

What's included in this plan set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing

Plan Options
CAD Set $1930.00 For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set Best Value! $1930.00 PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set $1930.00 For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Foundation Options
Slab $0.00 Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Mirror Reverse Sets $350.00 Choose how many sets of the 5 or 8 copy set to mirror. Text and dimensions will be backwards. Click here for more information.
Right-Reading Reverse $350.00 Choose this option to reverse your plans and to have the text and dimensions readable. Click here for more information.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

What's included?
Instant Download After Checkout

Subtotal $1930.00

Best Price Guaranteed*

Or order by phone: 1-800-913-2350

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-to-Build Report
