Plan 535-20

Photographs may show modified designs.
Plan 535-20

Key Specs


5528
sq ft

3
Beds

2.5
Baths

3
Floors

3
Garages

Plan Description

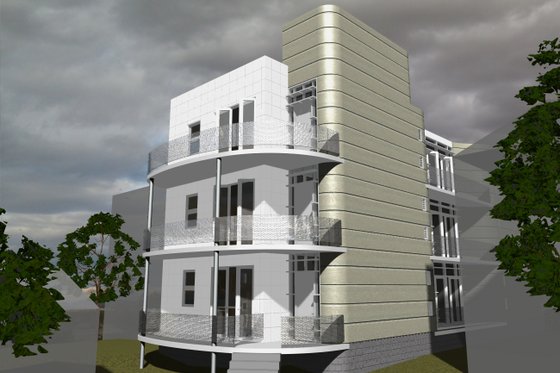

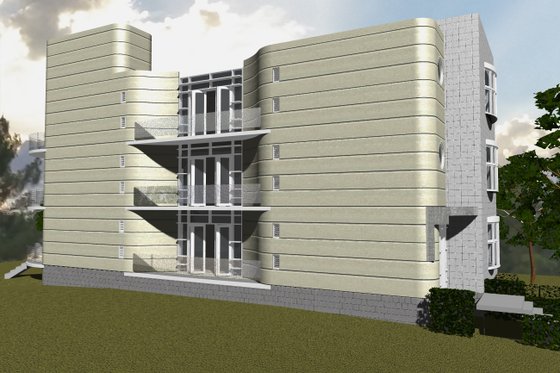

Contemporary 3 unit apartment building designed as an infill building for a minimum 30 foot wide lot, or as a stand alone. Separate detached garage can be built in rear of lot and accessible to alley. As designed, the building conforms to R-3 zoning for a 30' x 125' lot. This 3 unit apartment building has 3 bedrooms, 2 1/2 baths and expansive kitchen/eating area. Each apartment provides for open flow between the semi-private areas, with direct access to the outdoor balconies and decks. The units offer an efficient use of space that brakes the rigid grid design. The design offers a rooftop sun deck. Elevator is optional.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

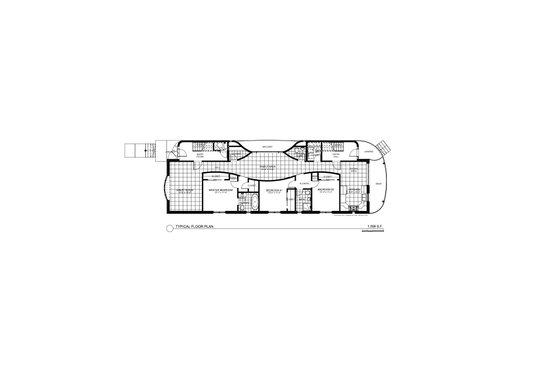

Floor Plan - Main Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 3
Baths : 2.5
Stories: 3
Garages: 3

Dimension

Depth : 74' 8"
Height : 32'
Width : 27'

Area

Total : 5528 sq/ft
Decks : 300 sq/ft
Lower Floor : 1506 sq/ft
Main Floor : 1506 sq/ft
Porch : 710 sq/ft
Upper Floor : 1506 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Roof Framing : WD. TRUSS
Roof Type : FLAT TRUSS

Exterior Wall Framing

Exterior Wall Finish : MASONRY, WOOD PANELS, TILES
Framing : ICF
Insulation : R-28

Kitchen Features

Breakfast Nook

Additional Room Features

Main Floor Laundry

Garage Features

Detached Garage
Rear Entry Garage
Rear Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Grill Deck Sundeck
Outdoor Kitchen Grill

More

Economical To Build
Wheelchair Adaptable

Energy Efficient Features

Energy Efficient Design

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing
