This Olde Florida architecture has all the casual elegance you would want in a house plan. With a great room layout, this open and inviting design offers 4,630 sq. ft. of living space with 5 bedrooms, 5 full baths and 2 half baths. The façade is composed of hardie board siding and a traditional metal roof with a quaint covered front porch. The two story design allows for spilt bedrooms and a luxurious master suite which comprises the majority of the right side of the main level. It also features high vaulted ceiling, large his and her walk-in closets and a spa like bath with a free standing tub. Upstairs, each bedroom has its own walk-in closet and private bath. Outside, the outdoor kitchen even has a built in fireplace. This house plan is perfect for any view oriented lot and entertaining family and friends. With an ample amount of windows and glass sliders, natural light is a top priority for this house plan! Please note: this plan is not available to be built in Florida, US
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

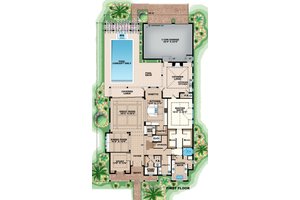

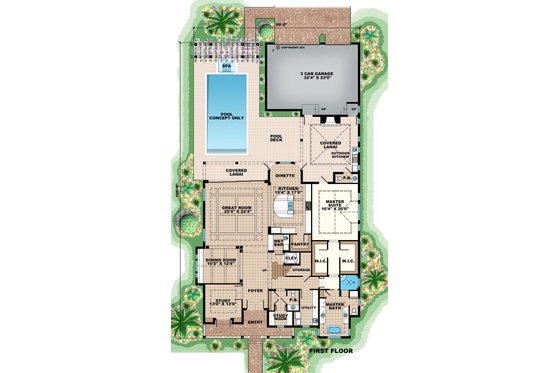

Floor Plan - Main Floor Plan

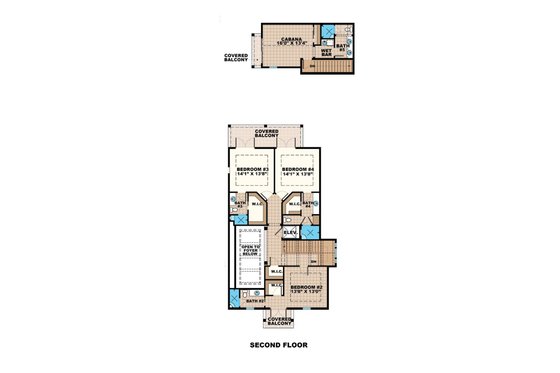

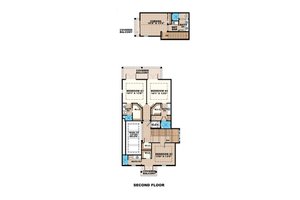

Floor Plan - Upper Floor Plan
Full Specs & Features
Depth : 105'
Height : 30'
Decks : 160 sq/ft
Garage : 837 sq/ft
Main Floor : 2995 sq/ft
Patios : 611 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : coffer, vault, flat, T&G
Main Ceiling : 10'
Upper Ceiling Ft : 23' 8"
Primary Pitch : 10:12
Roof Framing : Manufactured Trusses
Exterior Wall Framing
Exterior Wall Finish : hardieboard siding
Framing : CMU, 2x6 wood
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Rear Entry Garage
Covered Front Porch
Covered Rear Porch
Economical To Build
Jack & Jill Bath
Suited For Vacation Home
Energy Efficient Features
