Plan 27-468

Photographs may show modified designs.
Plan 27-468

Plan Description


This house plan is a blend of Olde Florida and Coastal Caribbean styles, hosting a variety of unique features. The design offers just under 6,000 square feet of living space with 5 bedrooms and 6.5 baths. The entry has an abundance of natural light infiltrating the two story foyer and open layout of this casual floor plan. The great room assists in the combination of the dining area, large island kitchen and a large bar area perfect for entertaining friends and family. The great room also features over 16 feet of pocketing glass sliding doors that provide a seamless transition from indoor to outdoor living. The main level master suite has access to a private lanai and offers vaulted ceilings and a grand master bath with his and hers wash rooms and a luxurious walk-in shower. The first floor also hosts a large cabana suite with a central cupola spilling light into the space from all sides while adding exquisite character to the design. This cabana also has a private entrance off the covered lanai which is perfect for extended visits from out-of-town guests. Please call if building in Collier, Lee and Charlotte counties in Florida, restrictions apply.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

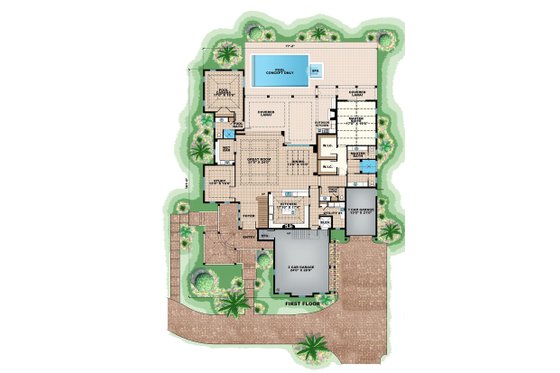

Floor Plan - Main Floor Plan

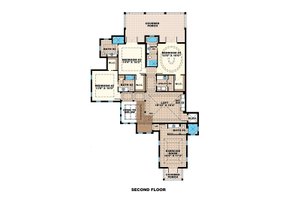

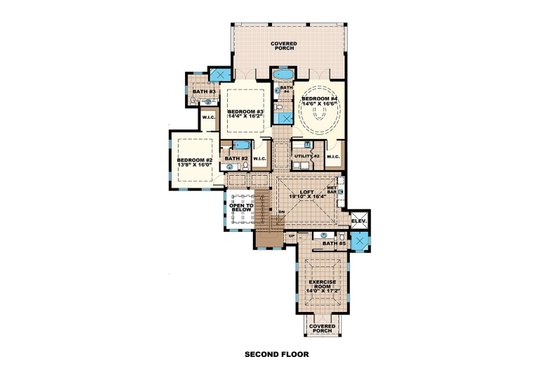

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 6.5
Stories: 2
Garages: 3

Dimension

Depth : 101'
Height : 30'
Width : 77' 2"

Area

Total : 8791 sq/ft
Garage : 1075 sq/ft
Main Floor : 3491 sq/ft
Patios : 890 sq/ft
Upper Floor : 2323 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Double coffer, coffer, vaulted, T&G, cupola, flat
Main Ceiling : 10'

Roof

Primary Pitch : 8:12
Roof Framing : Manufactured Trusses
Roof Type : Metal
Secondary Pitch : 6:12

Exterior Wall Framing

Exterior Wall Finish : Hardieboard siding
Framing : CMU

Bedroom Features

Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Storage Area
Upstairs Laundry
Wet Bar
Wine Cellar

Garage Features

Front Entry Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill

More

Empty Nester
Jack & Jill Bath
Suited For Vacation Home
Wheelchair Adaptable

What's included in this plan set


See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

    Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
    • Material Labels
    • Foor-to-Floor Heights
    • Roof Slope Indicators
    Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
    • Door and Window Sizes
    • Completely Dimensioned Floor Plan
    • Room Labels and Interior Room Sizes
    • Electrical Layouts
    • Building Section Markers
    • All Electrical Outlets, Fixtures, and Switching
    • Floor and Deck Joist Size and Spacing
    • Rough-in Plumbing Location (if applicable)
    • Mechanical Equipment Locations (if applicable)
    • Electrical Locations (if applicable)
    Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
    • All Beam and Header Heights and Locations
    • All Hips, Gables, Ridges and Valleys
    • Building Section Markers
    Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
    • Floor Joist Size and Spacing
    • Floor-to-Floor Heights
    • Non-Typical Plate Heights Indicated
    Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
    • All Labels Indicating Wall Construction
    • Foundation Wall Thickness and Reinforcing
    • Insulation Type and Thickness
    Miscellaneous Notes and Details
    • Miscellaneous General Notes
    • Stairway details (if applicable)
    Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

*See important information before purchasing

Pricing


Plan Options

CAD Set

$4500.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set

Best Value!
$4500.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$4500.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Crawlspace

$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.
