Plan 535-6

Photographs may show modified designs.
Plan 535-6

Key Specs


6672
sq ft

12
Beds

6
Baths

3
Floors

6
Garages

Plan Description


This multifamily building has 6 units. Each unit is 1112 sf with 2 bedrooms and 1.5 baths. The building has a central entry and features, open decks and balconies, as well as, expansive windows allowing each unit to have generous living spaces. Natural light floods the units from multiple directions offering ventilation and open vistas. Exterior walls are designed for “green wall” construction typical with insulated (R30) ICF walls. The flat roof design is suitable for solar panels or wind turbines
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Floor Plans

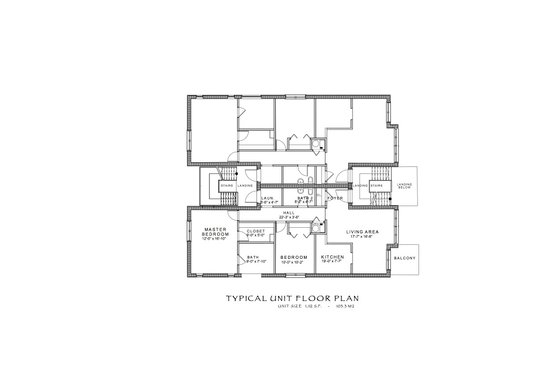

Floor Plan - Lower Floor Plan

Floor Plan - Upper Floor Plan

Full Specs & Features


Basic Features

Bedrooms : 12
Baths : 6
Stories: 3
Garages: 6

Dimension

Depth : 52' 6"
Height : 37' 8"
Width : 47'

Area

Total : 6672 sq/ft
Decks : 342 sq/ft
Main Floor : 2232 sq/ft
Upper Floor : 2232 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Bedroom Features

Walk In Closet

Additional Room Features

Loft

Outdoor Spaces

Balcony

What's included in this plan set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$1950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set

$4000.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation Options

Slab

$0.00
Ideal for level lot, single layer concrete poured directly on grade.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Audio Video Design

$100.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Home Furniture Planner

$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.

Lighting Design

$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
