The elegance of this plan is undeniable! The open floor plan allows for plenty of movement, while still keeping privacy for everybody. The master suite is on the ground floor and separated from the other first floor bedrooms. The expansive covered lanai runs the entire rear length of the house allowing each of the living spaces and bedrooms access to it. There are two additional suites upstairs with a loft and balconies overlooking the front of your property. This is a great floor plan, sure to offer everything you need in a home.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350

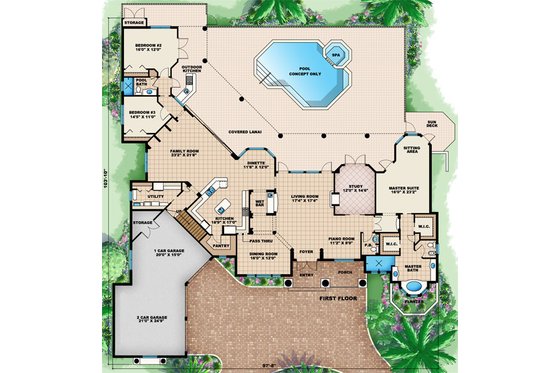

Floor Plan - Main Floor

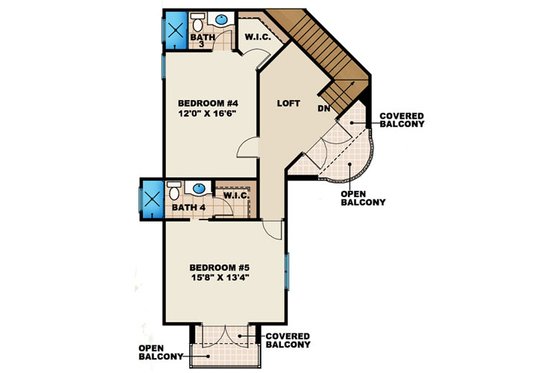

Floor Plan - Upper Floor
Full Specs & Features
Depth : 104'
Height : 28'
Decks : 124 sq/ft
Garage : 915 sq/ft
Main Floor : 3510 sq/ft
Patios : 950 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 7:12
Roof Framing : Manufactured Trusses
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Concrete block
Main Floor Bedrooms
Main Floor Master Bedroom
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
What's included in this plan set
See a sample plan set
*See important information before purchasing
Please call if building in Lee and Collier Counties of Florida, restrictions apply.
Elevations - Drawn at 1/8" to 1/4" Scale, and Includes:
Roof Slope Indicators
Floor Plans - Drawn at 1/8" to 1/4" Scale and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes
Building Section Markers
All Electrical Outlets, Fixtures, and Switching
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)
Roof Design Plan - Drawn at 1/8" to 1/4" scale and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys
Building Section Markers
Building Sections - Drawn at 1/8" to 1/4" Scale and Includes:
Floor Joist Size and Spacing
Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8" to 1/2" Scale and Includes
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness
Miscellaneous Notes and Details
Miscellaneous General Notes
Stairway details (if applicable)
Please Note: This design will not come with a foundation. The foundation should be created by a local structural engineer.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Ideal for level lot, single layer concrete poured directly on grade.
*Options with a fee may take time to prepare. Please call to confirm.
Audio Video Design
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
