Plan 453-50

Photographs may show modified designs.
Plan 453-50

Plan Description

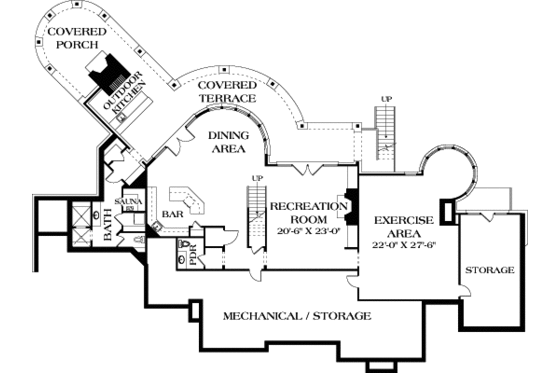

Entertainment spaces, thoughtfully planned, can be found throughout the home. On the lower level, a recreation room with fireplace opens to a large dining area. An outdoor kitchen with built-in grill and covered porch with fireplace can be enjoyed year round.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.

Full Specs & Features


Basic Features

Bedrooms : 5
Baths : 6.5
Stories: 2
Garages: 4

Dimension

Depth : 126' 6"
Height : 52' 6"
Width : 145' 11"

Area

Total : 8930 sq/ft
Basement Living: 2273 sq/ft
First Floor: 4003 sq/ft height 10'
Garage: 1287 sq/ft
Porch: 56 sq/ft

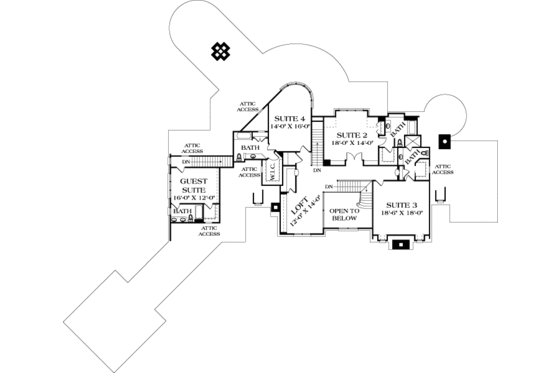

Second Floor: 2654 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone
Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Sunroom
Wet Bar

Garage Features

Carport Porte Cochere
Detached Garage
Oversized Garage
Rear Entry Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Screened Porch

More

Suited For Vacation Home
Unusual Shape

Structural Information Provided

Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing

Rooms

Bedroom 2:

252 sq/ft width 18' x depth 14'

Bedroom 3:

333 sq/ft width 18' 6" x depth 18'

Bedroom 4:

224 sq/ft width 14' x depth 16'

Bedroom 5:

192 sq/ft width 16' x depth 12'

Dining Room:

252 sq/ft width 14' 2" x depth 17' 10"

Exercise Room:

605 sq/ft width 22' x depth 27' 6"

Game Room:

471 sq/ft width 20' 6" x depth 23'

Garage:

556 sq/ft width 23' 2" x depth 24'

Garage Two:

469 sq/ft width 23' 8" x depth 19' 10"

Gathering Room:

331 sq/ft width 19' 6" x depth 17'

Kitchen:

251 sq/ft width 17' 4" x depth 14' 6"

Living Room:

360 sq/ft width 20' x depth 18'

Loft:

168 sq/ft width 12' x depth 14'

Master Bedroom:

312 sq/ft width 19' 6" x depth 16'

Study:

370 sq/ft width 18' 6" x depth 20'

What's included in this plan set


See a sample plan set
This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans (framing may be shown on floor plans in some cases.)
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
*See important information before purchasing

Pricing


Plan Options

PDF Set

Best Value!
$2160.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set

$2160.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Foundation Options

Daylight Basement

$0.00
Ideal for sloping lot, lower level of home partially underground.

*Options with a fee may take time to prepare. Please call to confirm.

Additional Options:

Additional Construction Sets

$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$90.00
Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$0.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
