This thoughtfully designed split bedroom plan lives large, within less area than you might think. The curb appeal starts with a pair of tall gables and the mixed siding blends in with the craftsman style columns. The main entrance Foyer reveals a grand open concept complete with formal Dining Room and spacious Great Room with fireplace and rear views. Glass sliding doors open to the Covered Lanai. The elongated Kitchen offers a breakfast bar and pantry. There’s plenty of room for the cook of the house with convenient access to both the Dining Room and Nook. Just beyond the kitchen is the hallway that takes you to the Den/4th bedroom with its own private bath. Garage access accommodates a mud bench and is just across from the utility room. A private entrance adds elegance and warmth when retreating for the evening to the Master Suite with its large walk-in closet and deluxe Master Bathroom suite with all the amenities. Two additional bedrooms are positioned opposite the master with a full bath between. Splendid details in every room make this a perfect fit for any size family.
This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-913-2350.
The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
Second floor framing (where appropriate)
The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

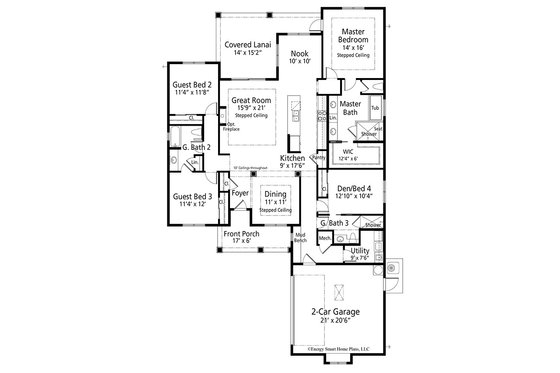

The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
Roof Plan & Soffit (Chase Layout) Plan
The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
Reflected Ceiling Plan
The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

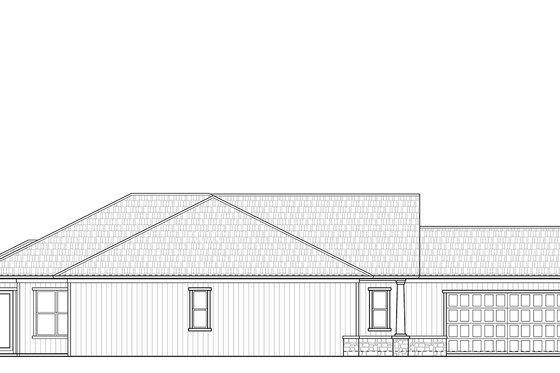

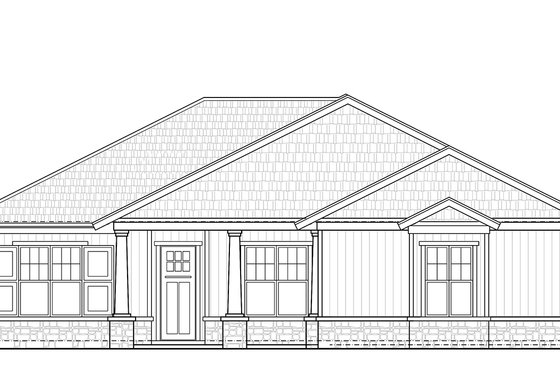

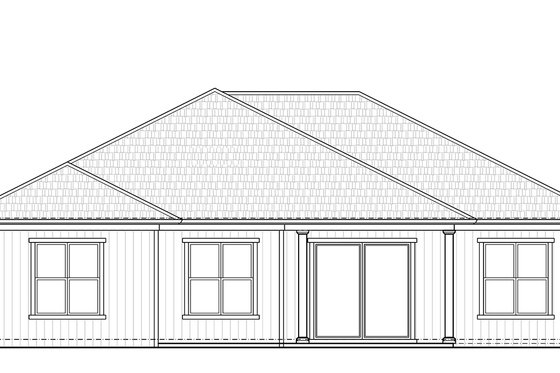

The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
Cross Section & Interior Elevations
The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.
The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
